MD / PRODUCT CATALOGUE
UO2
Upper Open Cabinet - 2 Adjustable Shelves
Reference size shown. Cabinet dimensions are configurable within the ranges listed below.
24" W x 30" cabinet body H x 12.75" ordered D
Upper cabinet - no legs. Full top and bottom; back fits between them.

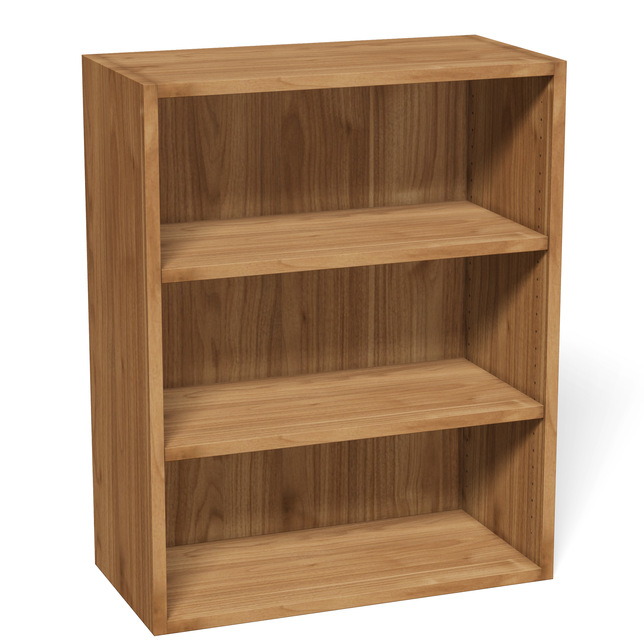

01 / CABINET VIEW
02 / CABINET RENDER - DOORS CLOSED
Image to be added.
C includes 2 item-defined shelfs. B is box only, with no shelves. Open upper shelf quantity follows the item code, not the automatic upper shelf schedule.

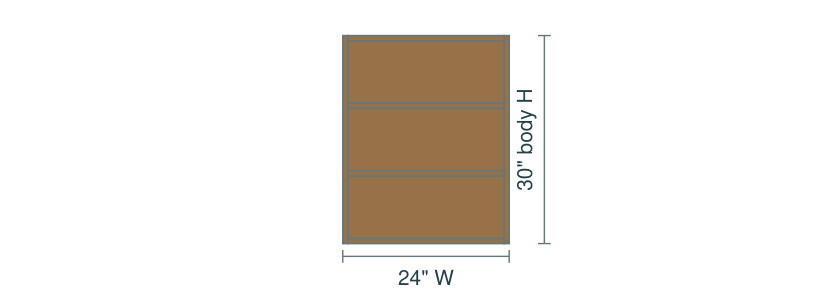

03 / FRONT ELEVATION

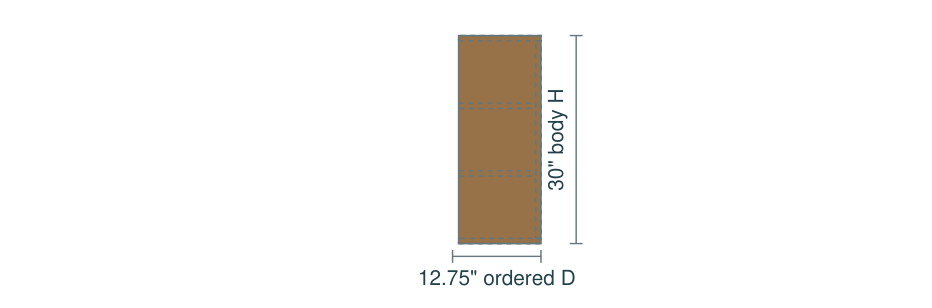

04 / RIGHT ELEVATION
Inches. Open cabinet; dimensions shown are reference dimensions.

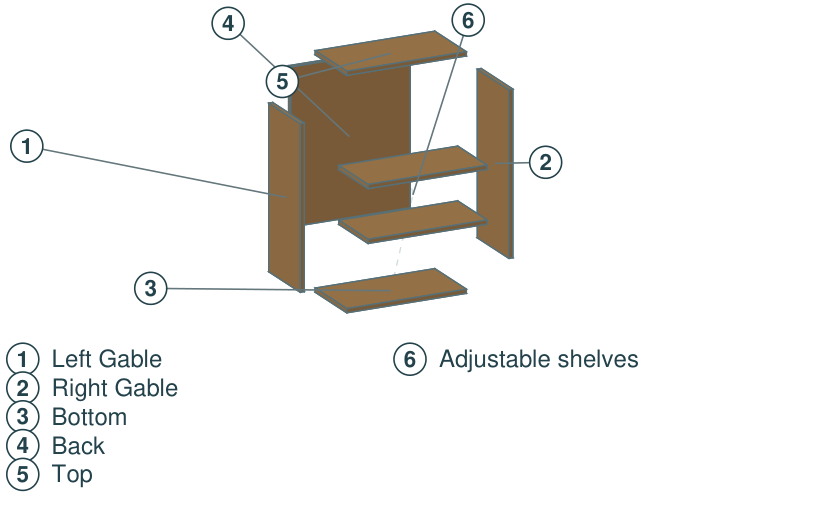

05 / SEPARATED CONSTRUCTION
06 / CONFIGURATION PARAMETERS
WIDTH10" - 36"
HEIGHT12" - 42"
DEPTH10" - 26"
BUILD LEVELSC COMPLETE B BOX ONLY
DIMENSION RULEAll dimensions in 1/8" increments.
OVERRIDE NOTESizes outside the standard ranges require review/override.
