Upper Microwave
Reference size shown. Cabinet dimensions are configurable within the ranges listed below.
24" W x 30" cabinet body H x 12.75" ordered D
Upper cabinet - no legs. Full top and bottom; back fits between them.

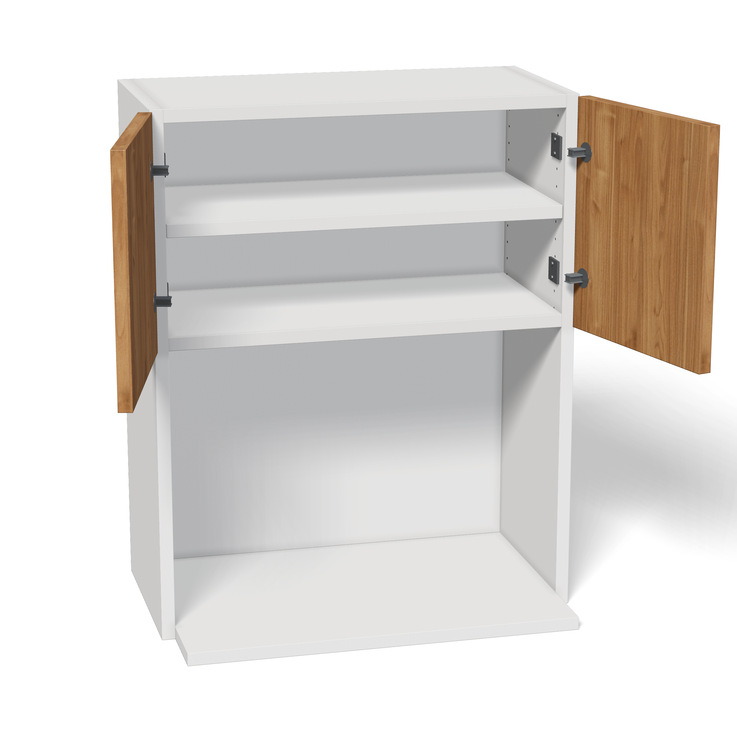

01 / CABINET RENDER - DOORS OPEN

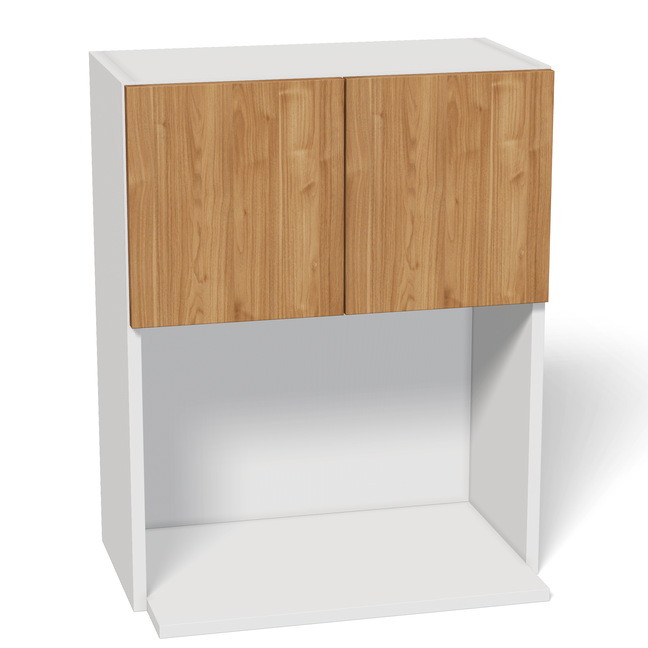

02 / CABINET RENDER - DOORS CLOSED
MICROWAVE OPENING: standard clear opening 16"; minimum clear opening 12". Opening height may be overridden. UPPER SECTION: minimum clear height 12". With a standard 16" opening, minimum overall cabinet height is 30.25".

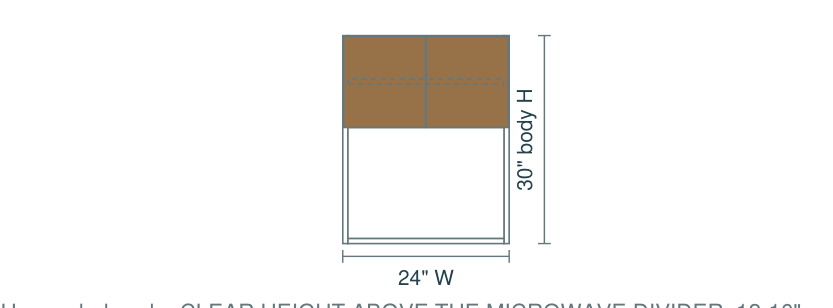

03 / FRONT ELEVATION

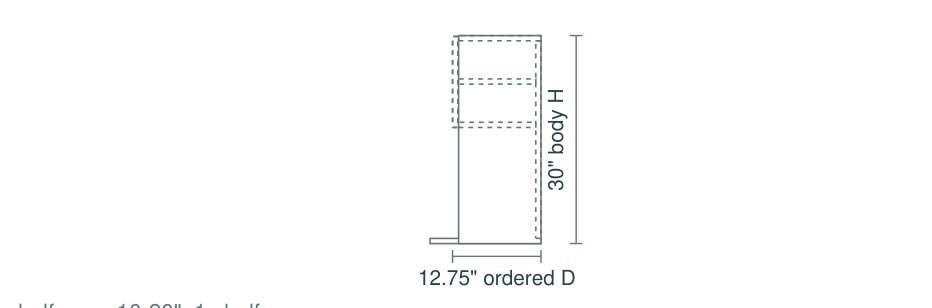

04 / RIGHT ELEVATION
Upper shelves by CLEAR HEIGHT ABOVE THE MICROWAVE DIVIDER: 12-16": no shelf; over 16-20": 1 shelf; over 20-40": 2 shelves; over 40-42": 3 shelves. Projecting bottom depth remains at least 16".

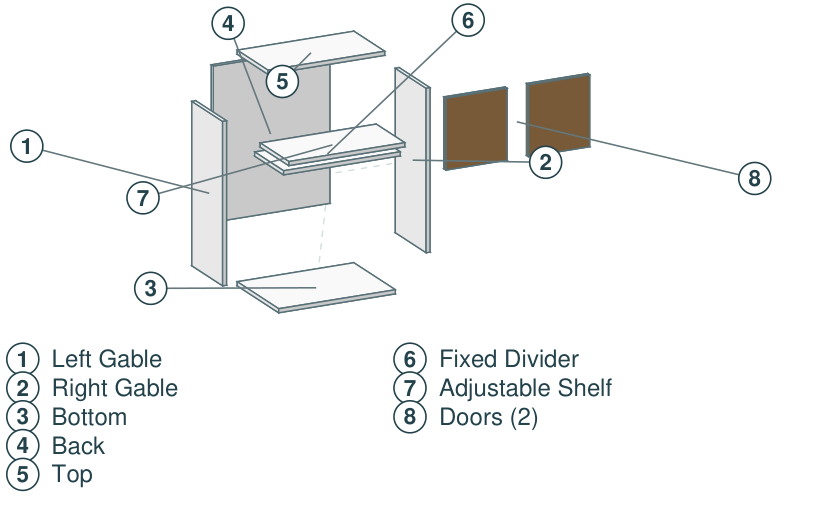

05 / SEPARATED CONSTRUCTION
06 / CONFIGURATION PARAMETERS
WIDTH20" - 36"
HEIGHT26.25" - 42"
DEPTH10" - 26"
BUILD LEVELSC COMPLETE N NO FRONTS B BOX ONLY
DIMENSION RULEAll dimensions in 1/8" increments.
OVERRIDE NOTESizes outside the standard ranges require review/override.
