UCM

Under-Counter Microwave Enclosure
Reference size shown. Cabinet dimensions are configurable within the ranges listed below.
24" W x 16" cabinet body H x 24" ordered D
Short appliance enclosure. No legs; drawer unit below ordered separately.

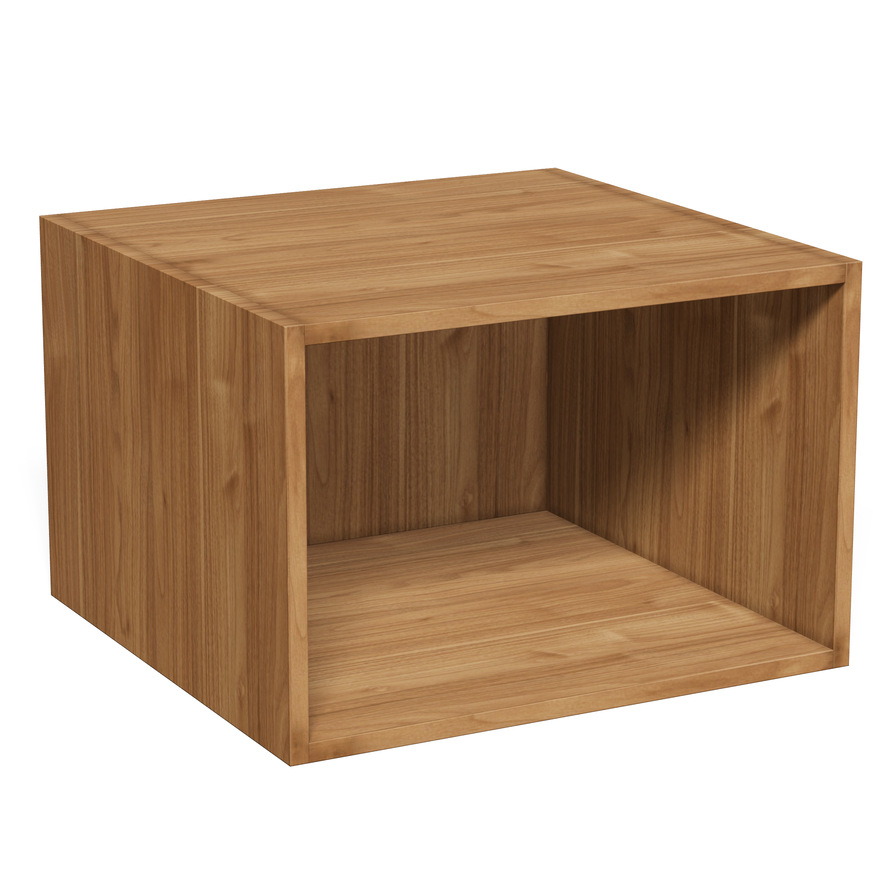

01 / CABINET VIEW

UCM open render

02 / CABINET RENDER - DOORS CLOSED

Image to be added.
No fronts, hardware, shelves or legs. The drawer unit below is ordered separately. All panels use selected exterior material. No appliance openings, ventilation or mounting details are inferred.

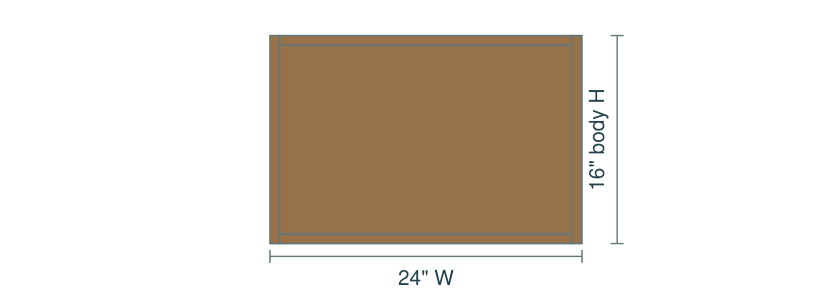

03 / FRONT ELEVATION

UCM front elevation

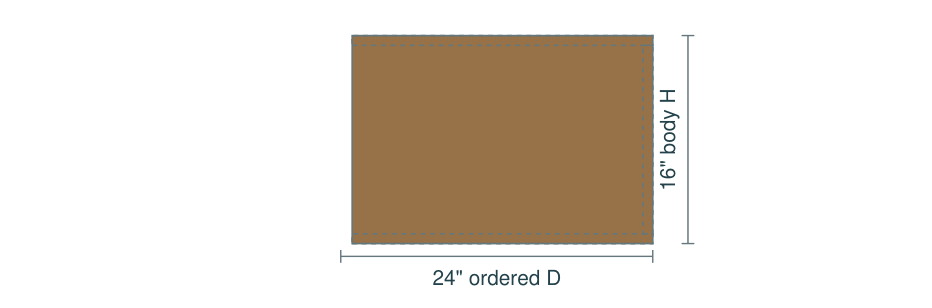

04 / RIGHT ELEVATION

UCM side elevation

Inches. Open cabinet; dimensions shown are reference dimensions.

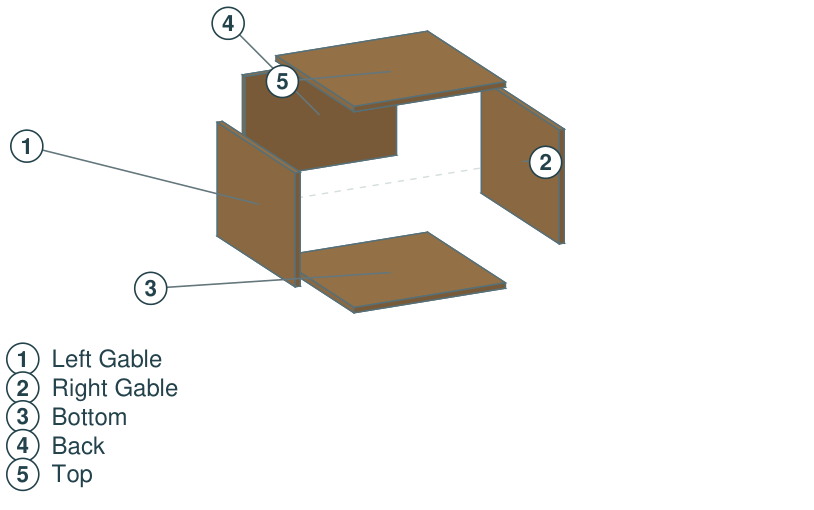

05 / SEPARATED CONSTRUCTION

UCM separated construction

06 / CONFIGURATION PARAMETERS

WIDTH20" - 36"
HEIGHT12" - 20"
DEPTH16" - 28"
BUILD LEVELSB BOX ONLY
DIMENSION RULEAll dimensions in 1/8" increments.
OVERRIDE NOTESizes outside the standard ranges require review/override.
SECTION: SPECIALTY / CORNER / OTHER© 2026 Millwork Direct. All rights reserved.
CABINET ESTIMATE / ORDER REQUEST

Add to Order Sheet

Configure this cabinet, add it to your project order sheet, then continue browsing the catalogue.

UCM
View Order Sheet

All dimensions are in inches and must be entered in 1/8-inch increments. Sizes outside standard ranges require a Measurement Override request and Millwork Direct review.
