UCBR

Upper Blind Corner / Blind Right
Reference size shown. Cabinet dimensions are configurable within the ranges listed below.
24" W x 30" cabinet body H x 12.75" ordered D
Upper cabinet - no legs. Full top and bottom; back fits between them.

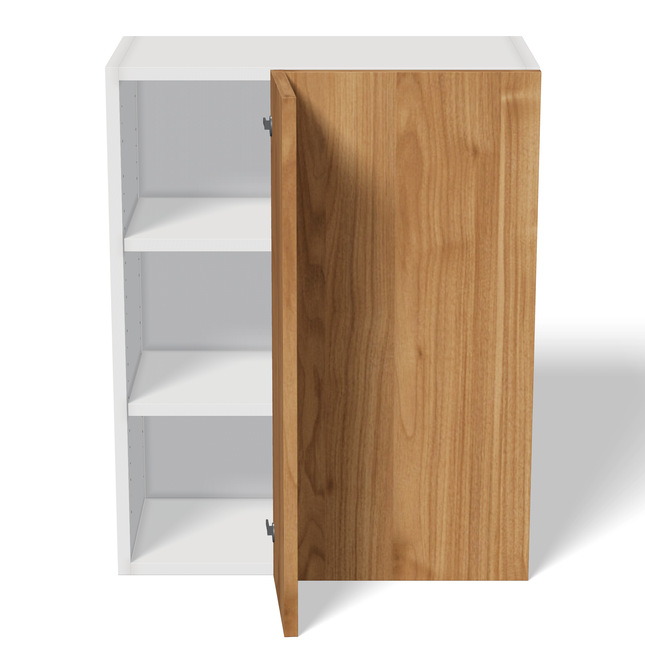

01 / CABINET RENDER - DOORS OPEN

UCBR open render

02 / CABINET RENDER - DOORS CLOSED

UCBR closed render
Blind panel right; usable opening left. Specialty hinges attach the door to the blind panel. * Size to maintain at least 10" access. Blind panel = perpendicular cabinet depth + 2"; width may require review.

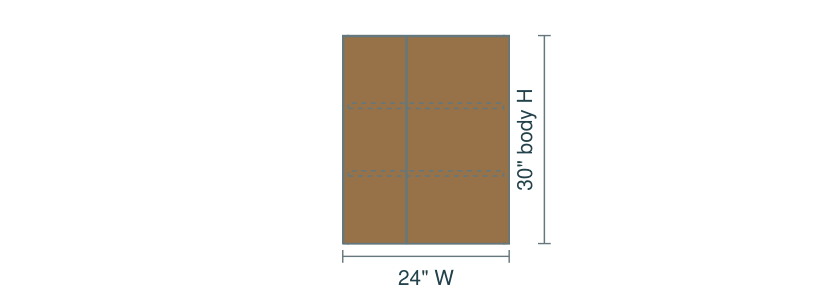

03 / FRONT ELEVATION

UCBR front elevation

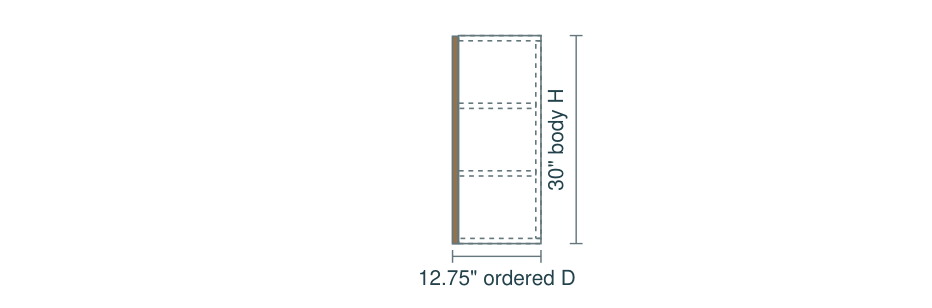

04 / RIGHT ELEVATION

UCBR side elevation

Upper shelves by cabinet height: 12-16": 0; >16-20": 1; >20-40": 2; >40-42": 3.

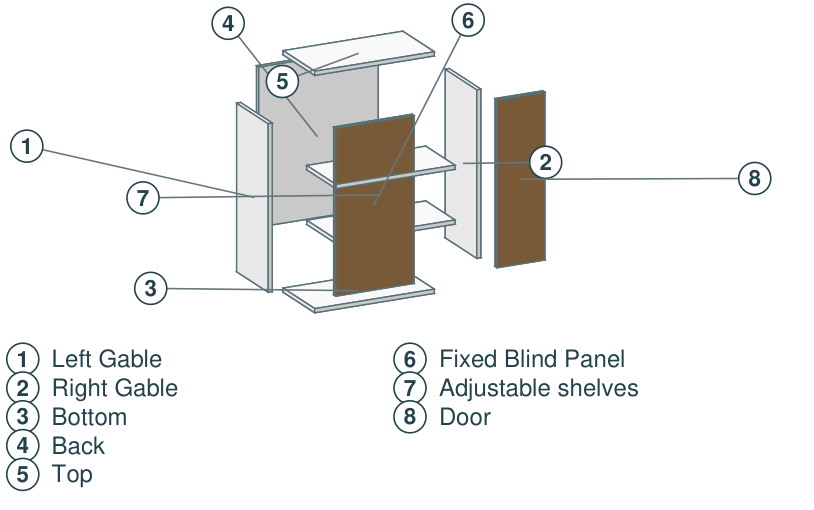

05 / SEPARATED CONSTRUCTION

UCBR separated construction

06 / CONFIGURATION PARAMETERS

WIDTH20" - 36" *Access: min 10"
HEIGHT12" - 42"
DEPTHCoordinatedPerpendicular unit
BUILD LEVELSC COMPLETE N NO FRONTS B BOX ONLY
DIMENSION RULEAll dimensions in 1/8" increments.
OVERRIDE NOTESizes outside the standard ranges require review/override.
SECTION: SPECIALTY / CORNER / OTHER© 2026 Millwork Direct. All rights reserved.
CABINET ESTIMATE / ORDER REQUEST

Add to Order Sheet

Configure this cabinet, add it to your project order sheet, then continue browsing the catalogue.

UCBR
View Order Sheet

All dimensions are in inches and must be entered in 1/8-inch increments. Sizes outside standard ranges require a Measurement Override request and Millwork Direct review.
