MD / PRODUCT CATALOGUE
U2D
Upper 2 Door
Reference size shown. Cabinet dimensions are configurable within the ranges listed below.
30" W x 30" cabinet body H x 12.75" ordered D
Upper cabinet - no legs. Full top and bottom; back fits between them.

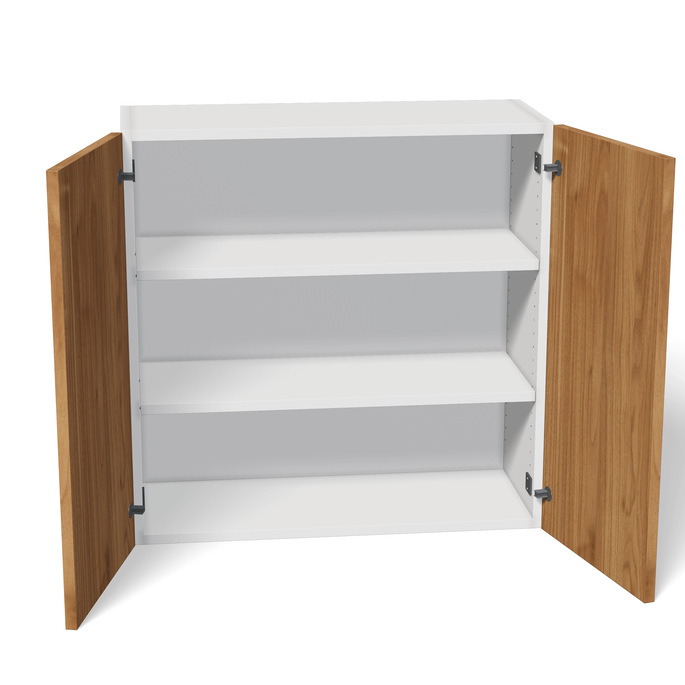

01 / CABINET RENDER - DOORS OPEN

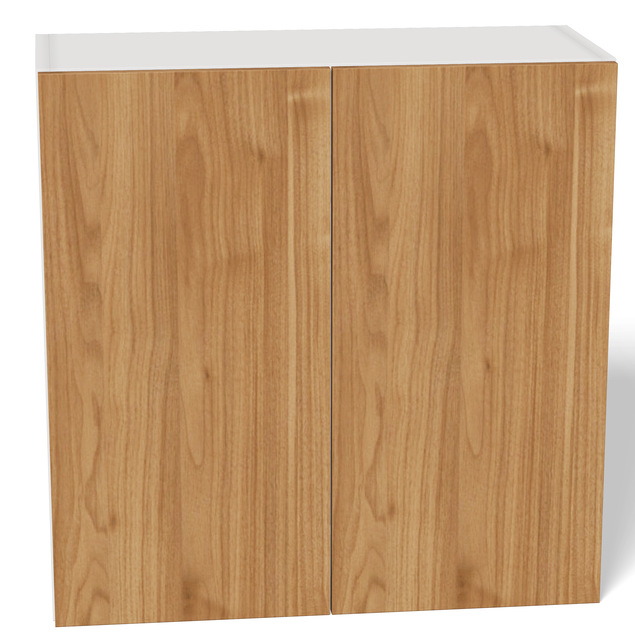

02 / CABINET RENDER - DOORS CLOSED
Shelves by cabinet height: 12-16": 0; >16-20": 1; >20-40": 2; >40-42": 3. Adjustable shelf positions and pin-hole locations are illustrative.

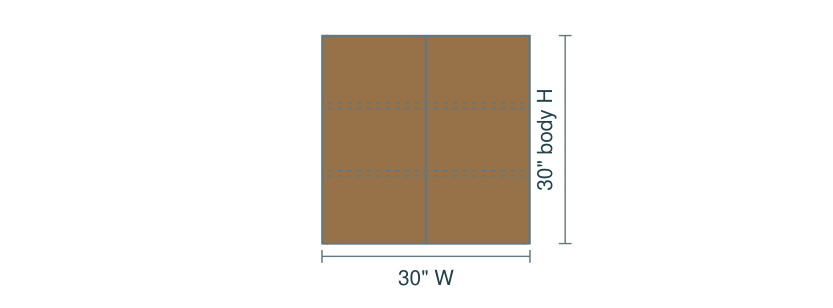

03 / FRONT ELEVATION

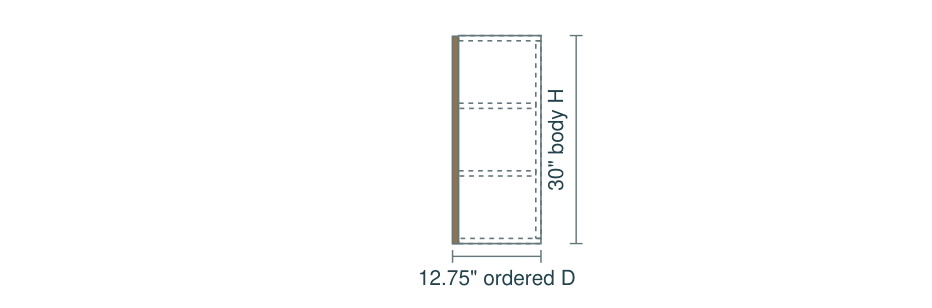

04 / RIGHT ELEVATION
Inches. Doors closed; dashed lines are concealed panels.

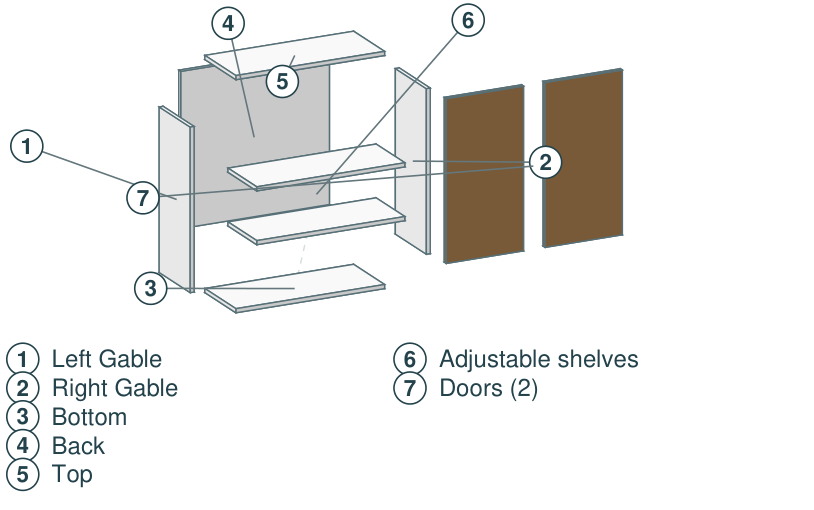

05 / SEPARATED CONSTRUCTION
06 / CONFIGURATION PARAMETERS
WIDTHOver 24" - 36"
HEIGHT12" - 42"
DEPTH10" - 26"
BUILD LEVELSC COMPLETE N NO FRONTS B BOX ONLY
DIMENSION RULEAll dimensions in 1/8" increments.
OVERRIDE NOTESizes outside the standard ranges require review/override.
CABINET ESTIMATE / ORDER REQUEST
Add to Order Sheet
Configure this cabinet, add it to your project order sheet, then continue browsing the catalogue.
