Home » Cabinet Catalogue » Tall Cabinets » TO6
MD  /  PRODUCT CATALOGUE

TO6

Open Tall Cabinet - 6 Adjustable Shelves
Reference size shown. Cabinet dimensions are configurable within the ranges listed below.
24" W x 80" cabinet body H x 16" ordered D
84" overall height with 4" legs. Toe kick is a separate MD item.

01 / CABINET VIEW

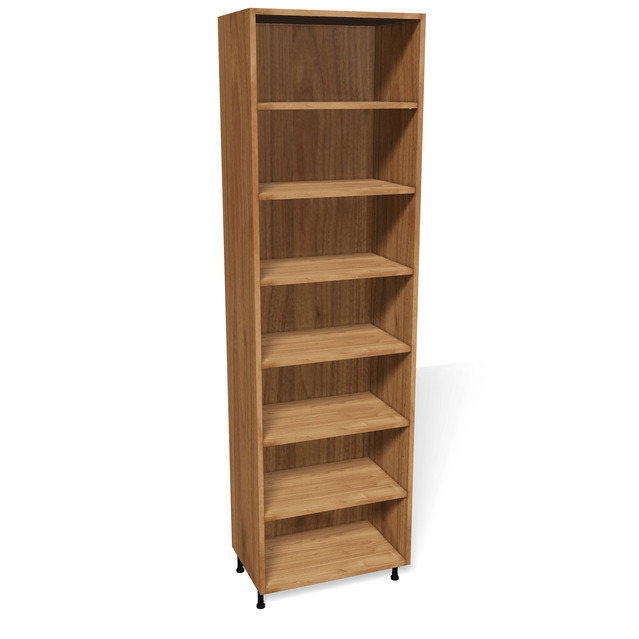

TO6 open render

02 / CABINET RENDER - DOORS CLOSED

Image to be added.
Shelf quantity is defined by the item code: 6 adjustable shelves. Additional shelves available at extra cost. C includes the item-defined shelves; B is box only, with no shelves.

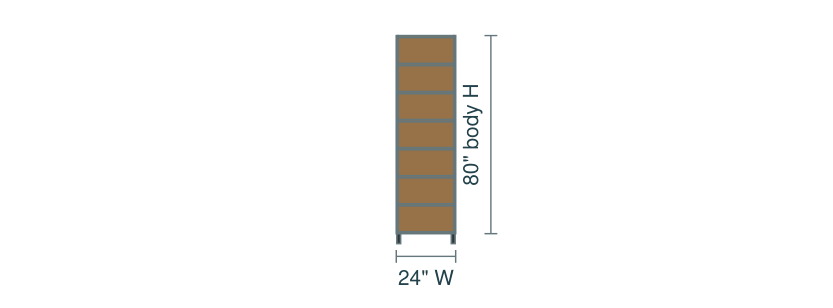

03 / FRONT ELEVATION

TO6 front elevation

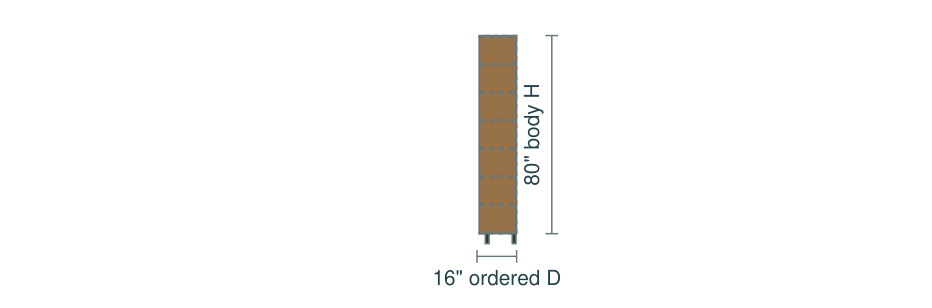

04 / RIGHT ELEVATION

TO6 side elevation

Inches. Open cabinet; dimensions shown are reference dimensions.

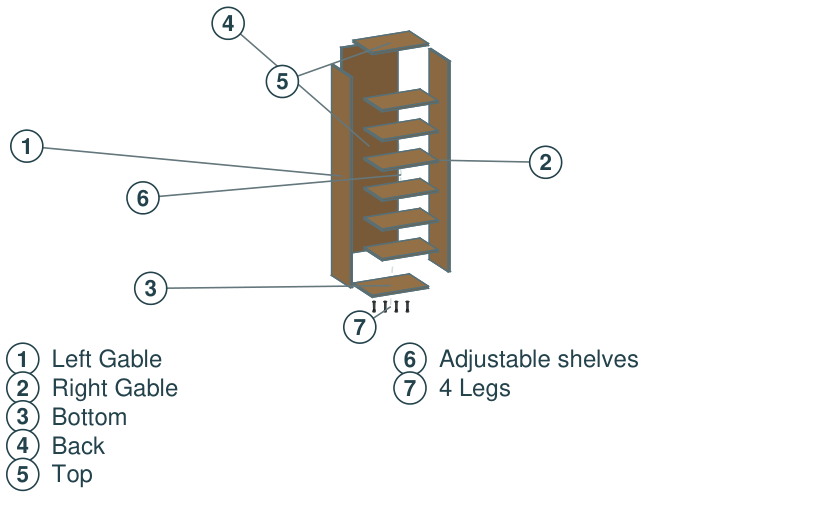

05 / SEPARATED CONSTRUCTION

TO6 separated construction

06 / CONFIGURATION PARAMETERS

WIDTH10" - 26"
HEIGHT32" - 92"
DEPTH14" - 28"Standard: 24"
BUILD LEVELSC COMPLETE B BOX ONLY
DIMENSION RULEAll dimensions in 1/8" increments.
OVERRIDE NOTESizes outside the standard ranges require review/override.
SECTION: TALL CABINETS© 2026 Millwork Direct. All rights reserved.
CABINET ESTIMATE / ORDER REQUEST

Add to Order Sheet

Configure this cabinet, add it to your project order sheet, then continue browsing the catalogue.

TO6
View Order Sheet

All dimensions are in inches and must be entered in 1/8-inch increments. Sizes outside standard ranges require a Measurement Override request and Millwork Direct review.
