MD / PRODUCT CATALOGUE
TO4
Open Tall Cabinet - 4 Adjustable Shelves
Reference size shown. Cabinet dimensions are configurable within the ranges listed below.
24" W x 80" cabinet body H x 16" ordered D
84" overall height with 4" legs. Toe kick is a separate MD item.

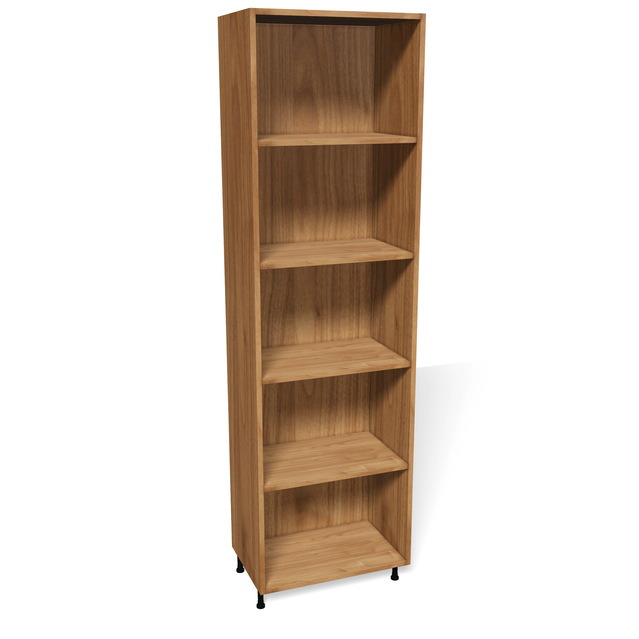

01 / CABINET VIEW
02 / CABINET RENDER - DOORS CLOSED
Image to be added.
Shelf quantity is defined by the item code: 4 adjustable shelves. Additional shelves available at extra cost. C includes the item-defined shelves; B is box only, with no shelves.

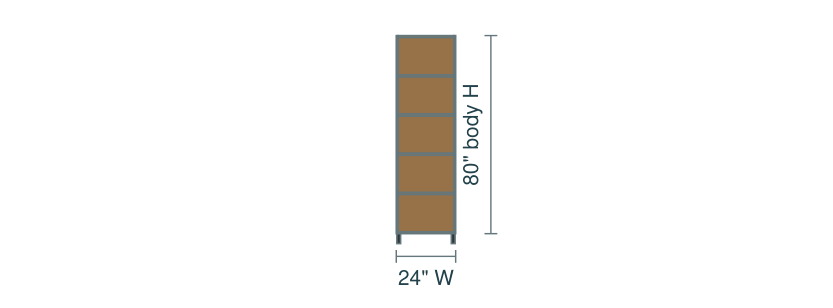

03 / FRONT ELEVATION

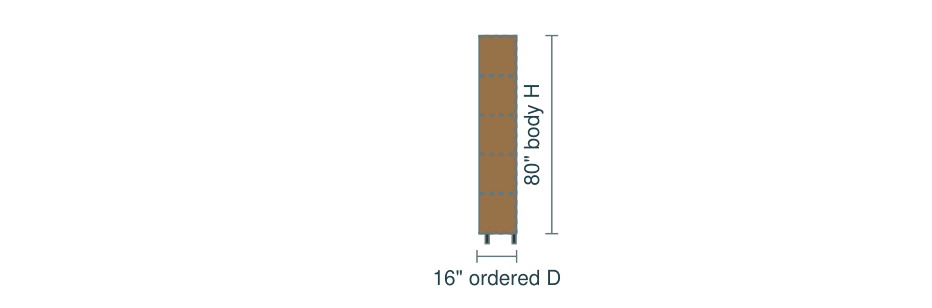

04 / RIGHT ELEVATION
Inches. Open cabinet; dimensions shown are reference dimensions.

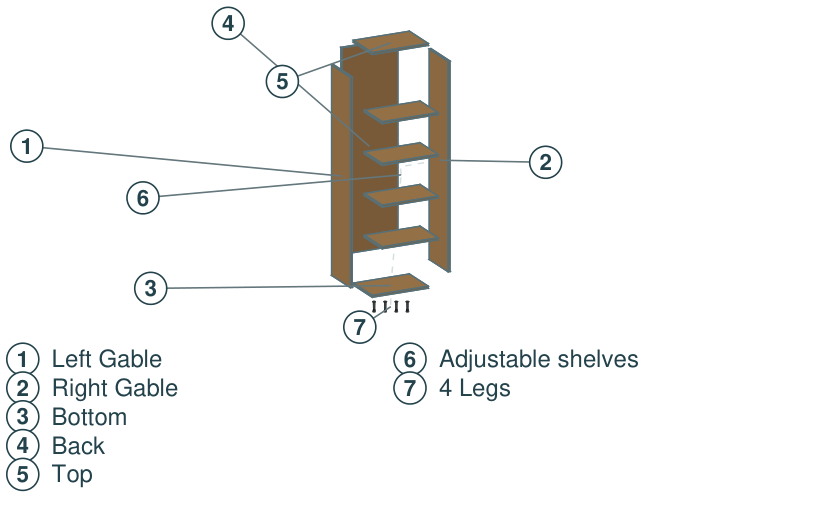

05 / SEPARATED CONSTRUCTION
06 / CONFIGURATION PARAMETERS
WIDTH10" - 26"
HEIGHT32" - 92"
DEPTH14" - 28"Standard: 24"
BUILD LEVELSC COMPLETE B BOX ONLY
DIMENSION RULEAll dimensions in 1/8" increments.
OVERRIDE NOTESizes outside the standard ranges require review/override.
CABINET ESTIMATE / ORDER REQUEST
Add to Order Sheet
Configure this cabinet, add it to your project order sheet, then continue browsing the catalogue.
