T1D6R
Tall 1 Door, 6 Adjustable Shelves - Right
Reference size shown. Cabinet dimensions are configurable within the ranges listed below.
12" W x 80" cabinet body H x 16" ordered D
84" overall height with 4" legs. Toe kick is a separate MD item.

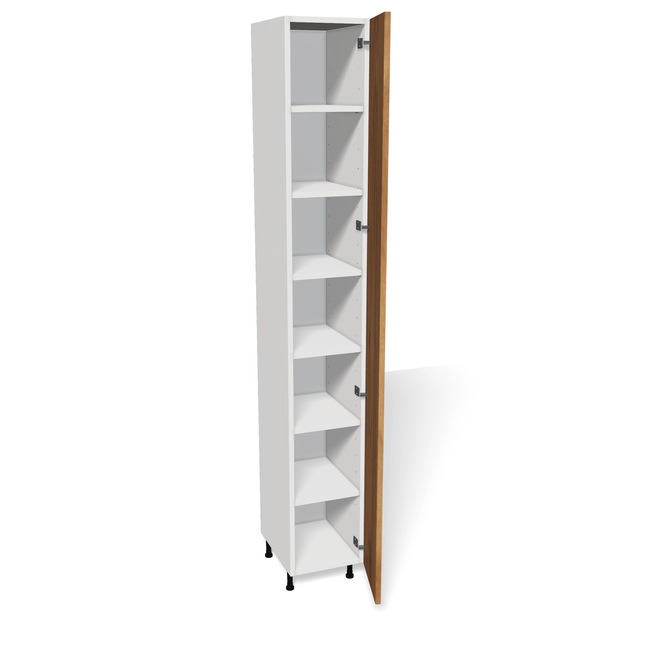

01 / CABINET RENDER - DOORS OPEN

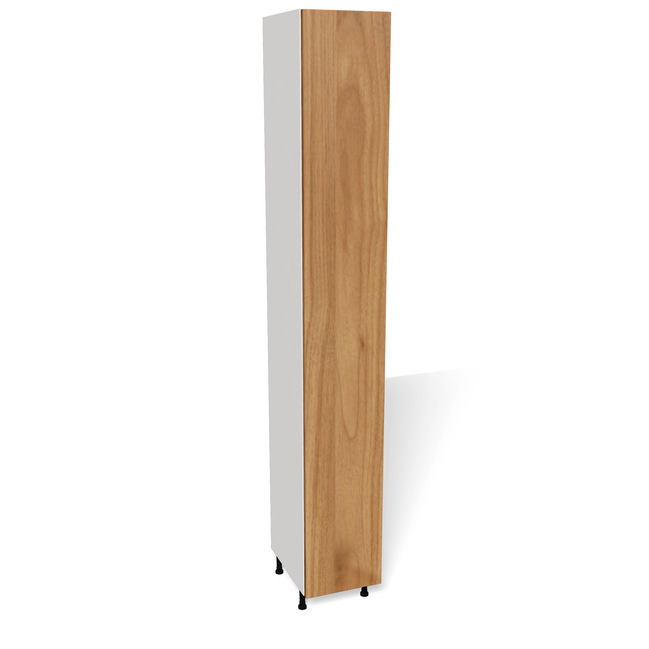

02 / CABINET RENDER - DOORS CLOSED
Shelf quantity is defined by the item code: 6 adjustable shelves. Additional shelves available at extra cost. Adjustable shelf positions and pin-hole locations are illustrative.

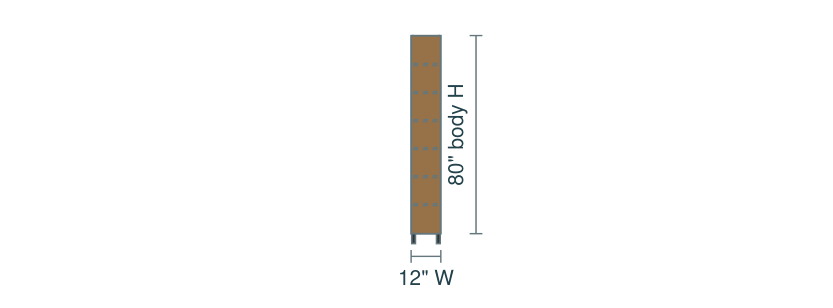

03 / FRONT ELEVATION

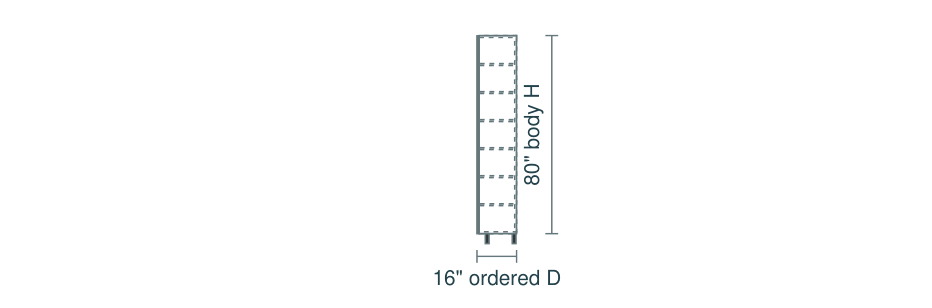

04 / RIGHT ELEVATION
Inches. Doors closed; dashed lines are concealed panels.

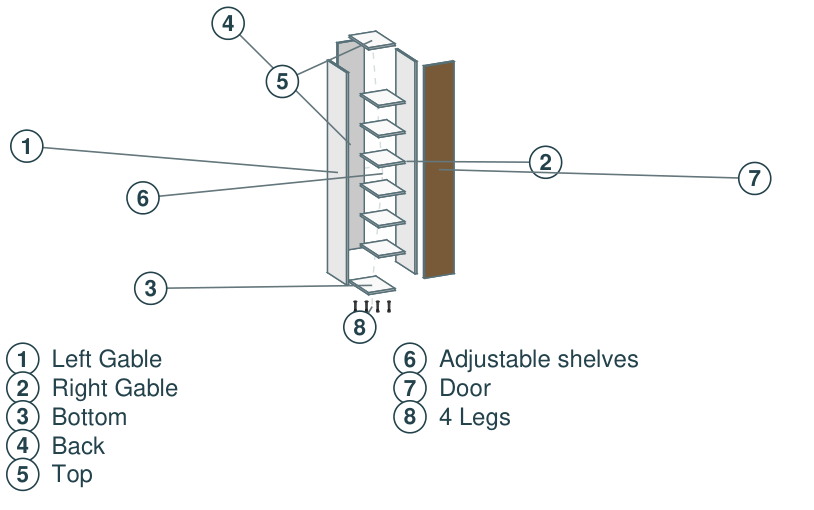

05 / SEPARATED CONSTRUCTION
06 / CONFIGURATION PARAMETERS
WIDTH10" - 24"
HEIGHT32" - 92"
DEPTH14" - 28"Standard: 24"
BUILD LEVELSC COMPLETE N NO FRONTS B BOX ONLY
DIMENSION RULEAll dimensions in 1/8" increments.
OVERRIDE NOTESizes outside the standard ranges require review/override.
CABINET ESTIMATE / ORDER REQUEST
Add to Order Sheet
Configure this cabinet, add it to your project order sheet, then continue browsing the catalogue.
