SBD1L
Sink Base 1 Door Left
Reference size shown. Cabinet dimensions are configurable within the ranges listed below.
24" W x 30.75" cabinet body H x 24" ordered D
34.75" overall height with 4" legs. Toe kick is a separate MD item.

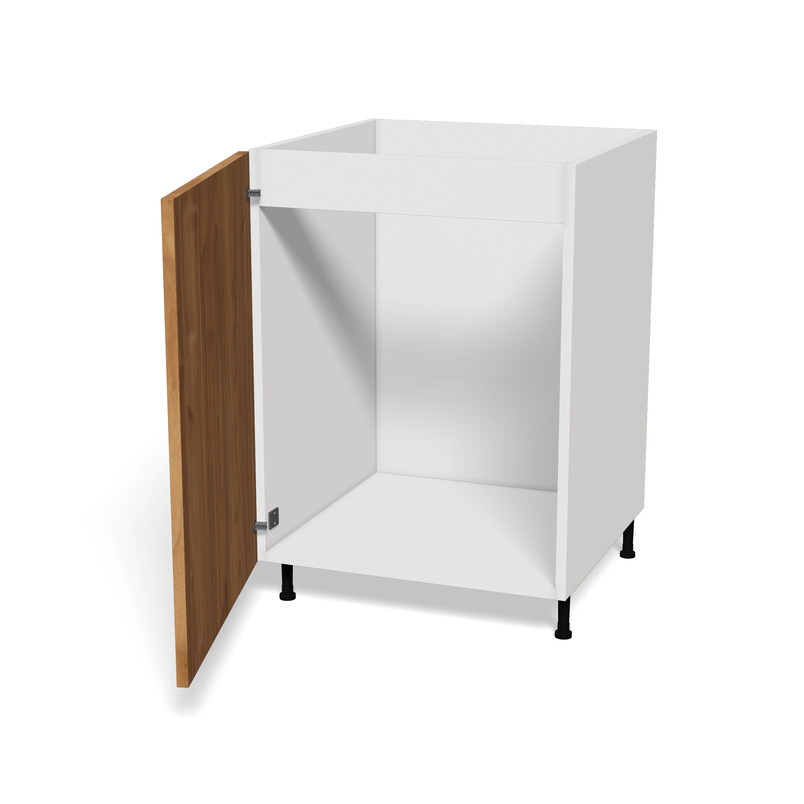

01 / CABINET RENDER - DOORS OPEN

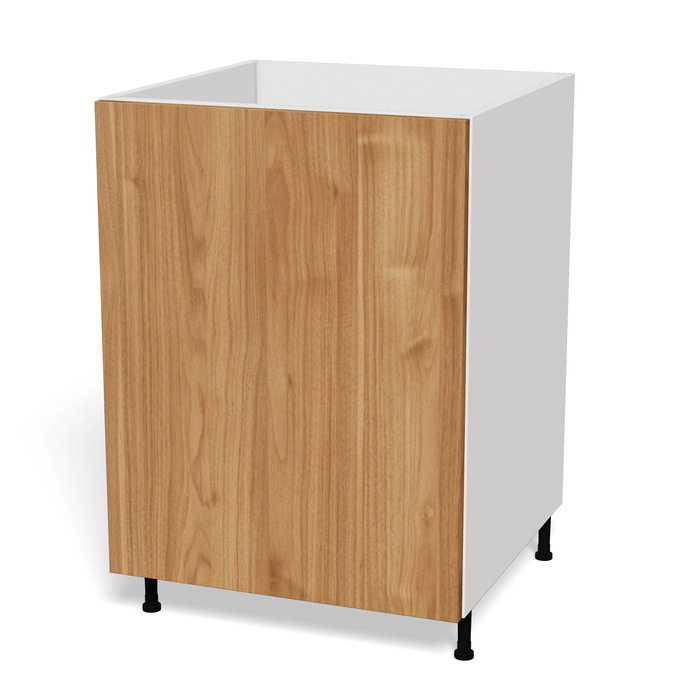

02 / CABINET RENDER - DOORS CLOSED
Same formula-driven cabinet; finish and hardware shapes are illustrative.

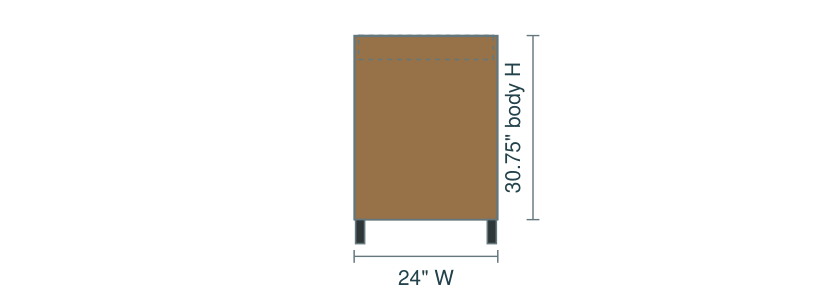

03 / FRONT ELEVATION

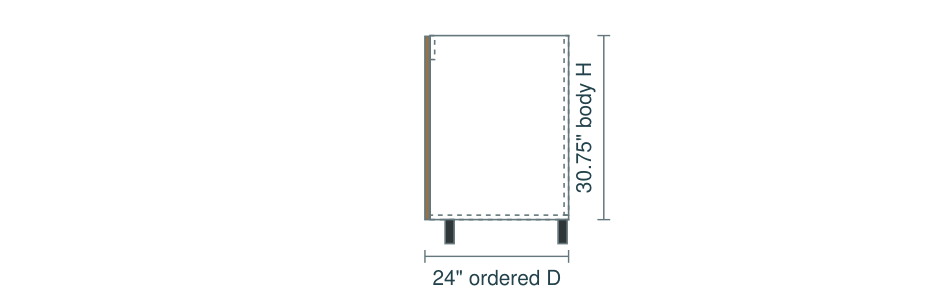

04 / RIGHT ELEVATION
Inches. Doors closed; dashed lines are concealed panels.

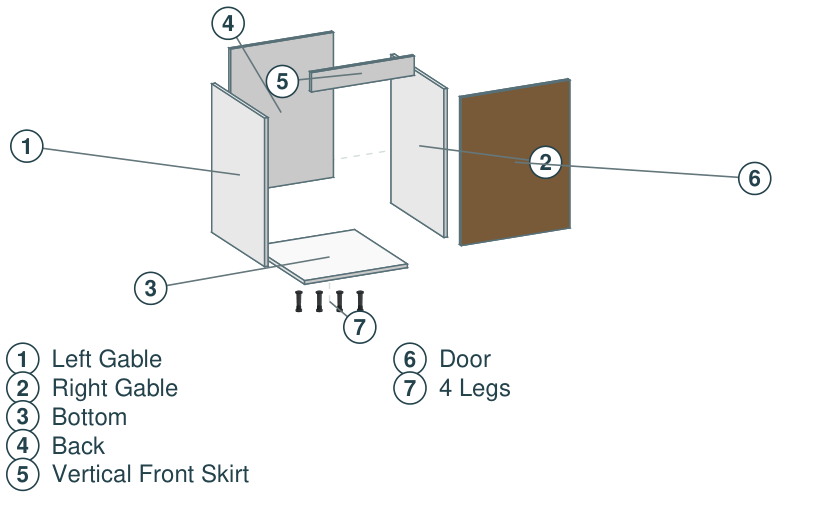

05 / SEPARATED CONSTRUCTION
06 / CONFIGURATION PARAMETERS
WIDTH18" - 24"
HEIGHT24" - 36"Standard: 30.75"
DEPTH20" - 28"Standard: 24"
BUILD LEVELSC COMPLETE N NO FRONTS B BOX ONLY
DIMENSION RULEAll dimensions in 1/8" increments.
OVERRIDE NOTESizes outside the standard ranges require review/override.
