MD  /  PARTS & COMPONENTS CATALOGUE

S2

Hollow Floating Shelf
Full top and bottom panels with internal spines; rear remains open.
Custom W x custom D x selected overall H

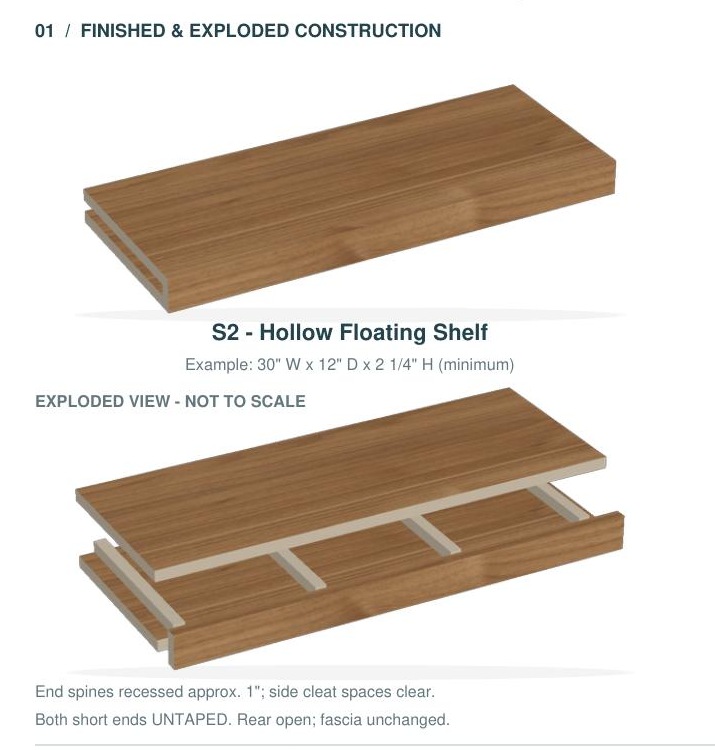

01 / FINISHED & EXPLODED CONSTRUCTION

S2 primary product view

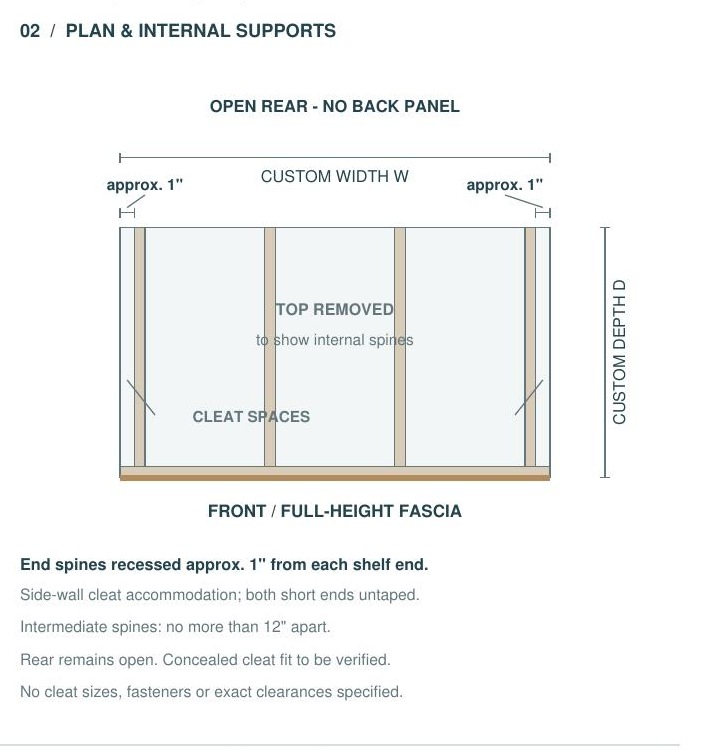

02 / PLAN & INTERNAL SUPPORTS

S2 dimensions and options

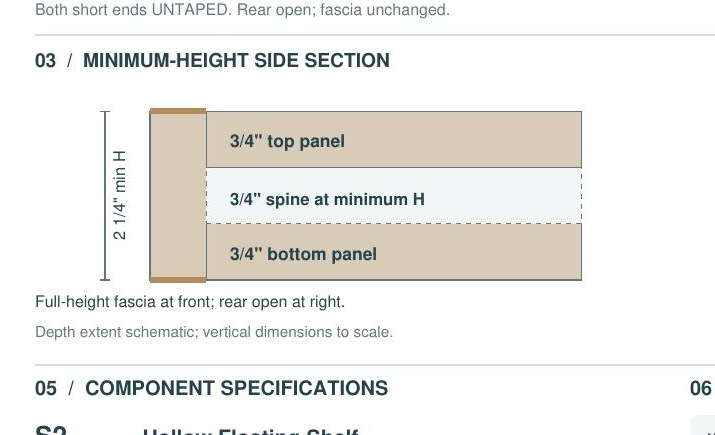

03 / MINIMUM-HEIGHT SIDE SECTION

S2 construction detail

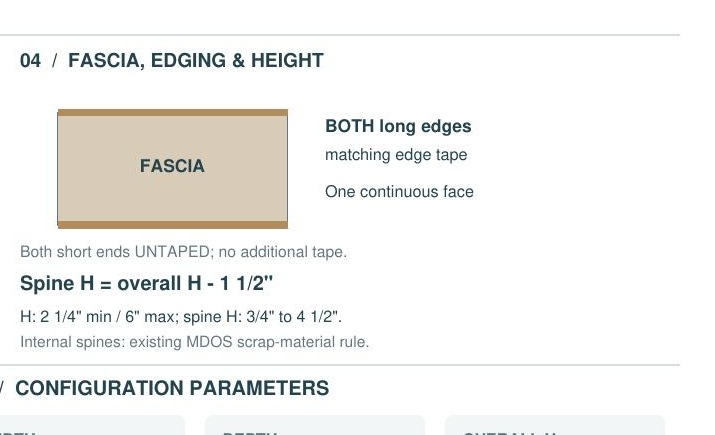

04 / FASCIA, EDGING & HEIGHT

S2 detail view

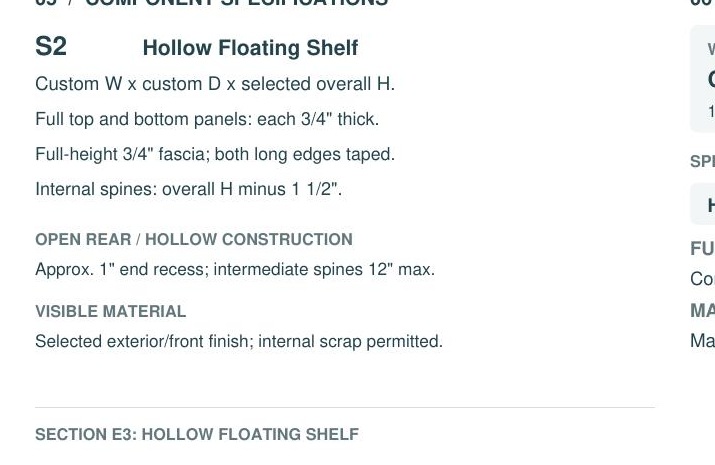

05 / COMPONENT SPECIFICATIONS

S2 component specifications

06 / CONFIGURATION PARAMETERS

WIDTHCUSTOM1/8" increments
DEPTHCUSTOM1/8" increments
OVERALL H2 1/4" - 6"1/8" increments
CONSTRUCTION / EDGINGFull-height front fascia; both long horizontal edges taped.
DIMENSION RULEAll ordering dimensions in 1/8" increments.
ORDERING / REVIEW NOTEMaximum W / D depends on selected material and manufacturing constraints.
SECTION: SECTION E3 - HOLLOW FLOATING SHELF© 2026 Millwork Direct. All rights reserved.
PARTS & COMPONENTS ESTIMATE / ORDER REQUEST

Add to Order Sheet

Configure this component, add it to your project Order Sheet, then continue browsing the catalogue.

S2
View Order Sheet

Use approved fixed/selectable sizes. Custom dimensions must use 1/8-inch increments where permitted. Special or non-standard requests require Millwork Direct review.
