MD / PARTS & COMPONENTS CATALOGUE
S1
Shelf with Front Lip
Fixed 2-inch lip raised 1/4 inch above shelf top.
Custom W x custom D; 3/4" main shelf

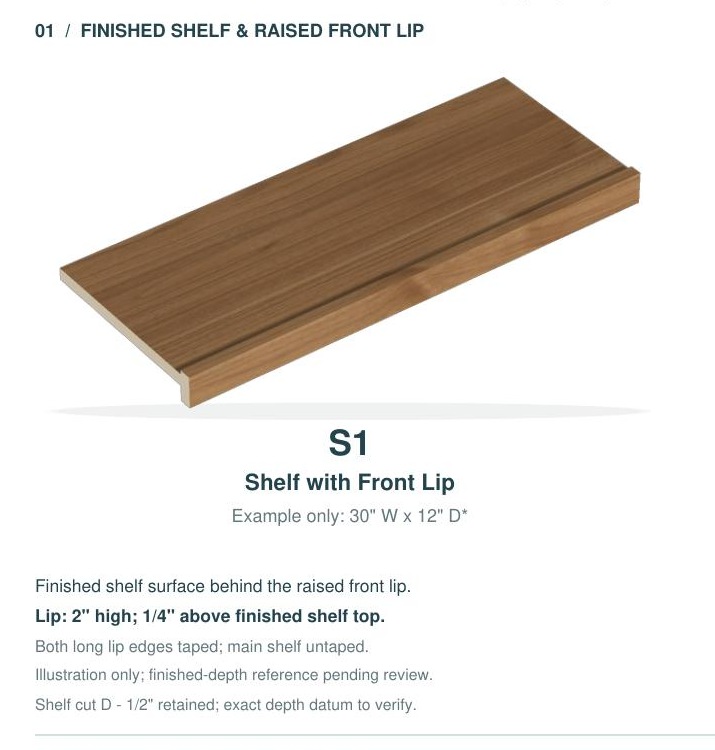

01 / FINISHED SHELF & RAISED FRONT LIP

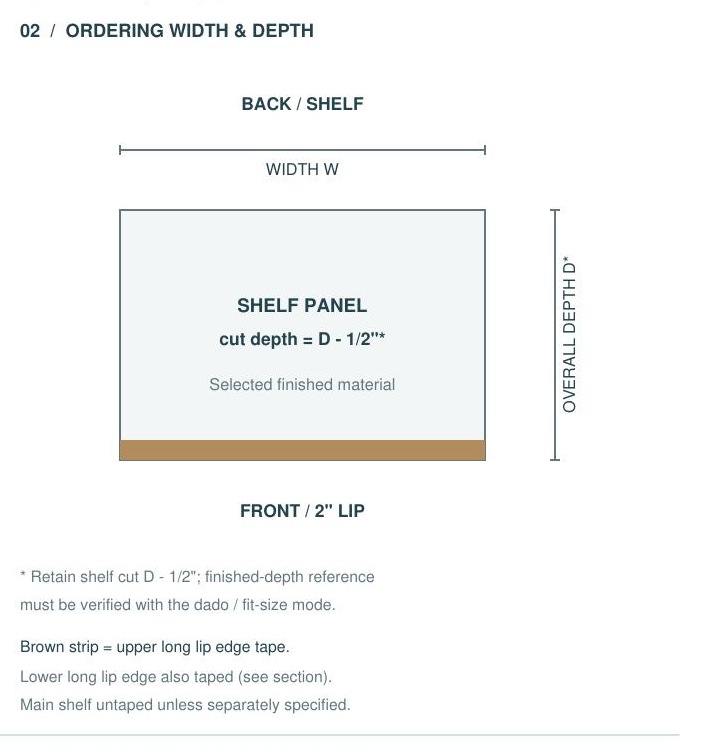

02 / ORDERING WIDTH & DEPTH

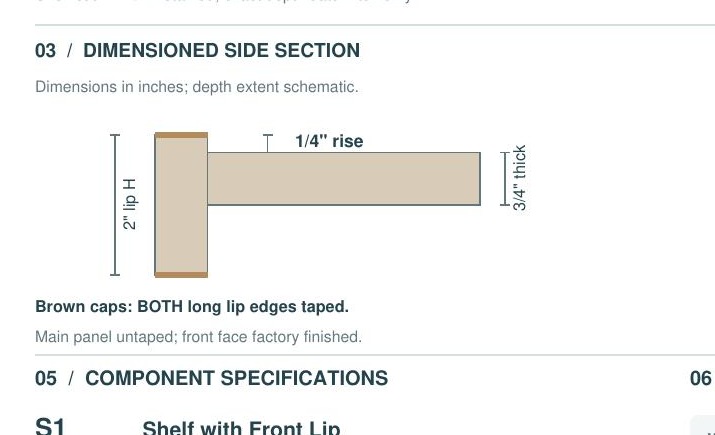

03 / DIMENSIONED SIDE SECTION

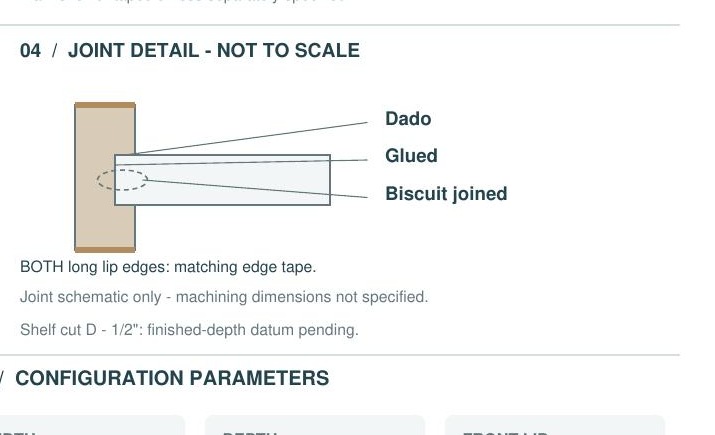

04 / JOINT DETAIL - NOT TO SCALE

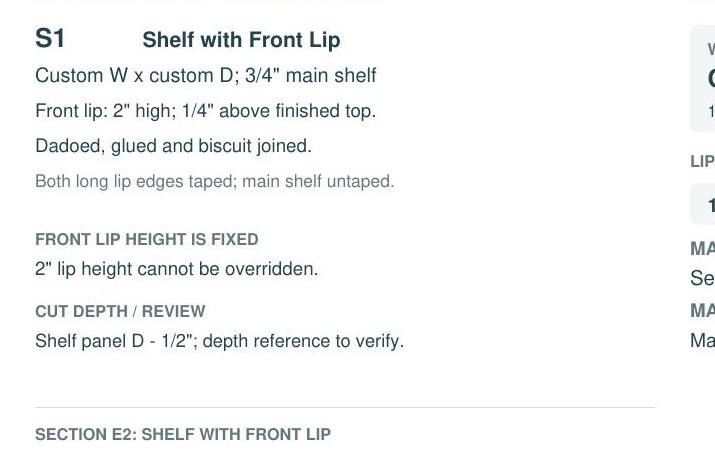

05 / COMPONENT SPECIFICATIONS
06 / CONFIGURATION PARAMETERS
WIDTHCUSTOM1/8" increments
DEPTHCUSTOM1/8" increments
FRONT LIP2" highFIXED
EDGE / CONSTRUCTIONBoth long lip edges taped; main shelf untaped.
DIMENSION RULEWidth and depth in 1/8" increments. Lip height fixed.
ORDERING / REVIEW NOTEShelf panel cut depth = D - 1/2"; finished-depth datum requires review.
