MD / PARTS & COMPONENTS CATALOGUE
MBG2
Double Mini Base Gable
Two full 3/4-inch panels laminated face-to-face.
35" H x 6" D x 1 1/2" thick

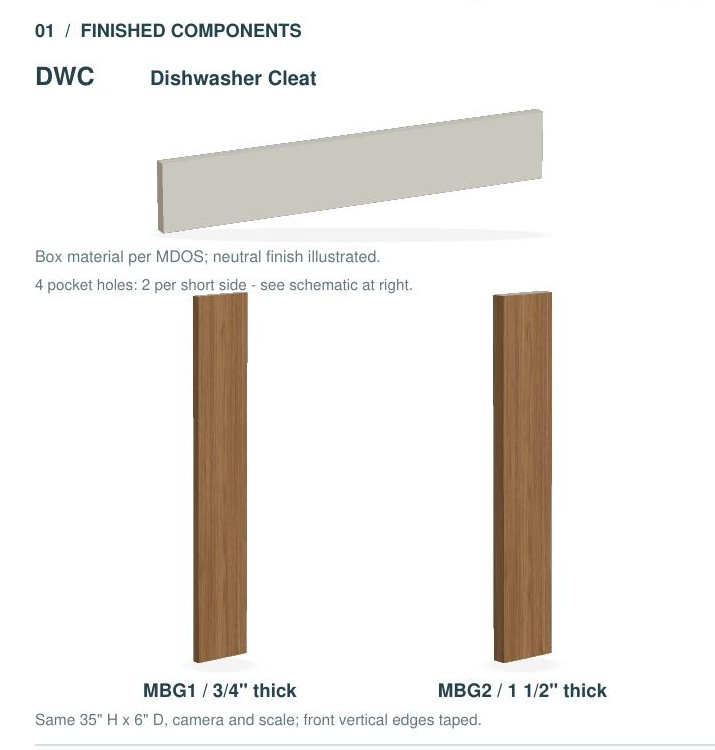

01 / FINISHED COMPONENTS

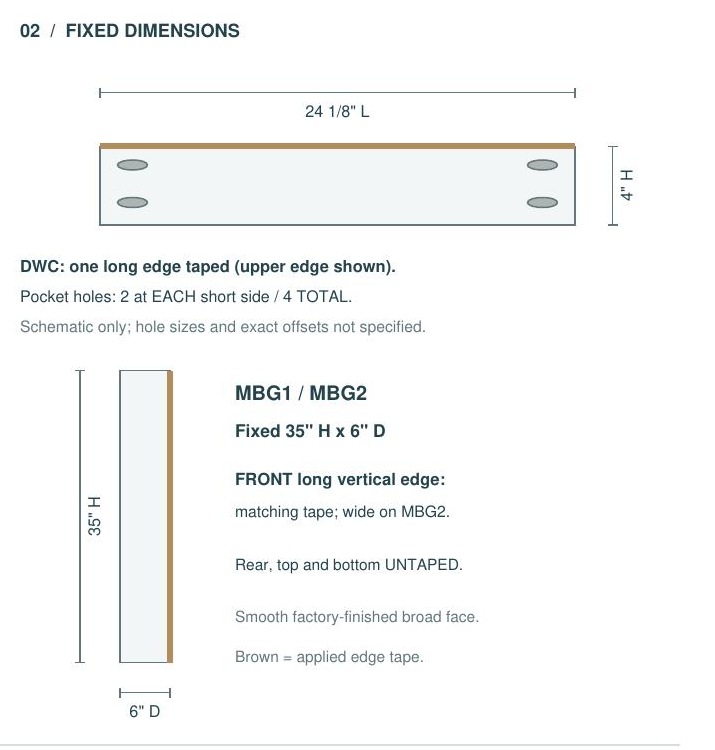

02 / FIXED DIMENSIONS

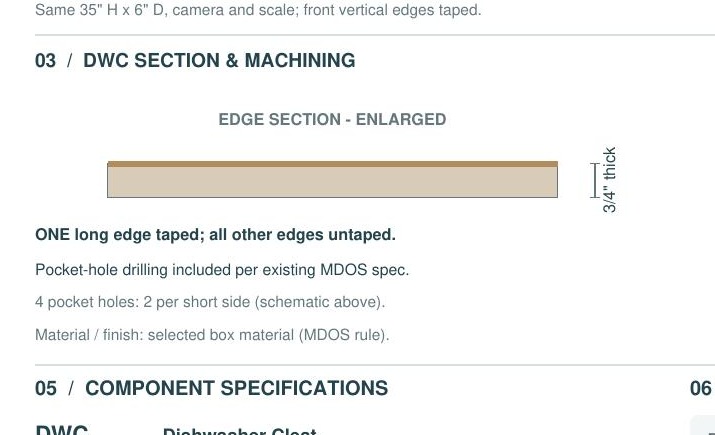

03 / DWC SECTION & MACHINING

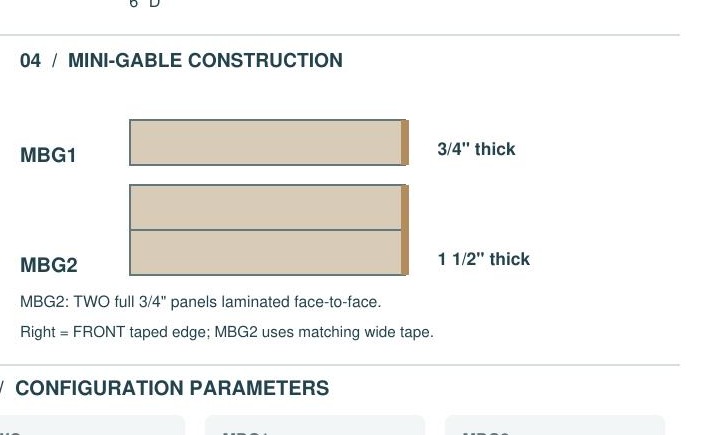

04 / MINI-GABLE CONSTRUCTION

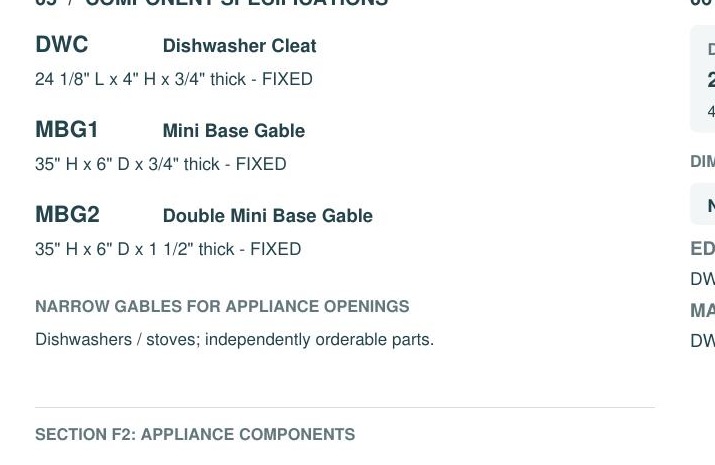

05 / COMPONENT SPECIFICATIONS
06 / CONFIGURATION PARAMETERS
HEIGHT35"FIXED
DEPTH6"FIXED
THICKNESS1 1/2"FIXED
EDGE BANDINGFront vertical edge wide-taped; rear, top and bottom untaped.
DIMENSION RULEFixed dimensions. No client dimension overrides.
ORDERING / REVIEW NOTESpecial or nonstandard requests require review before production.
PARTS & COMPONENTS ESTIMATE / ORDER REQUEST
Add to Order Sheet
Configure this component, add it to your project Order Sheet, then continue browsing the catalogue.
