MD / PARTS & COMPONENTS CATALOGUE
IPDRW
Inner Pullout Drawer
Complete internal drawer assembly for use behind an exterior hinged door.
Cabinet exterior W / overall D incl. doors / selected drawer H

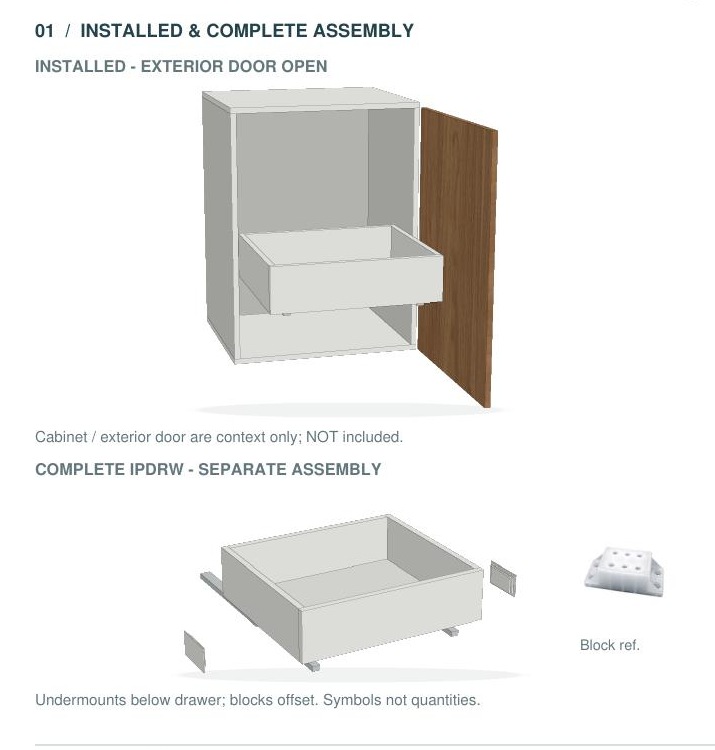

01 / INSTALLED & COMPLETE ASSEMBLY

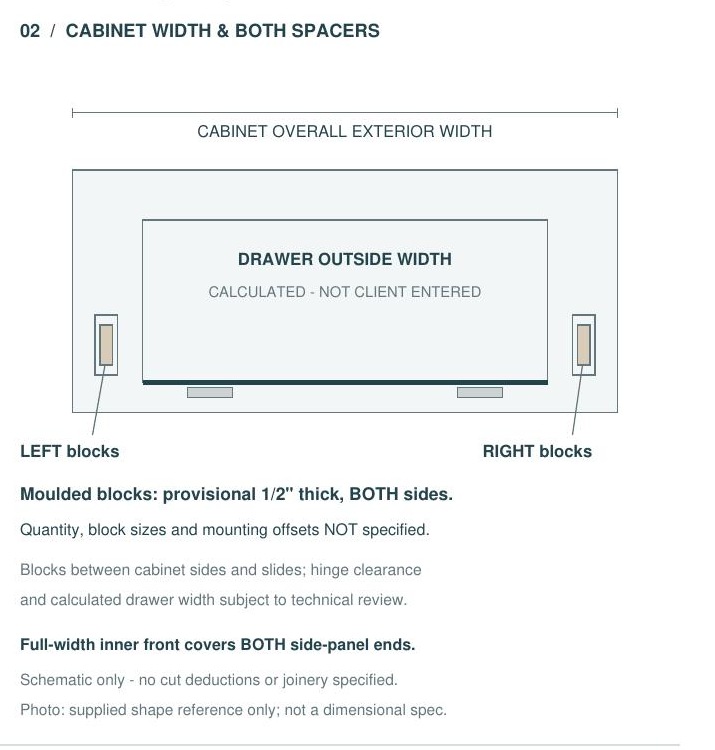

02 / CABINET WIDTH & BOTH SPACERS

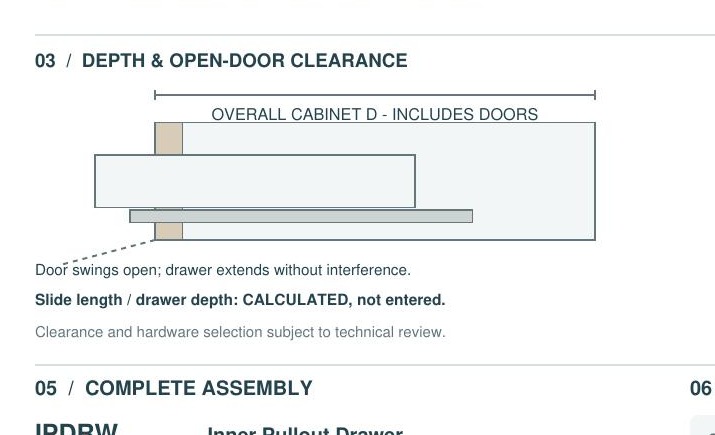

03 / DEPTH & OPEN-DOOR CLEARANCE

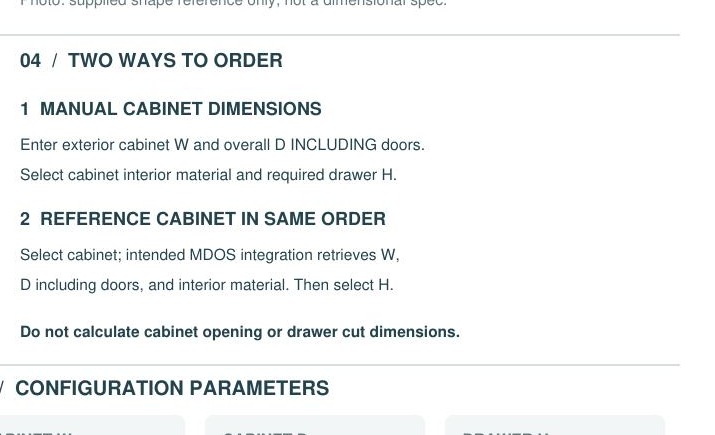

04 / TWO WAYS TO ORDER
06 / CONFIGURATION PARAMETERS
CABINET WEXTERIORmanual / reference
CABINET DINCL. DOORSmanual / reference
DRAWER H4" / 6" / 8"or custom: 1/8"
HARDWARE / SPACERSSlides, mounts and moulded spacer blocks on both sides included.
DIMENSION RULEDrawer height custom in 1/8" increments where needed.
ORDERING / REVIEW NOTEBox sizing, slide choice, hinge clearance and allowances require technical review.
PARTS & COMPONENTS ESTIMATE / ORDER REQUEST
Add to Order Sheet
Configure this component, add it to your project Order Sheet, then continue browsing the catalogue.
