MD / PRODUCT CATALOGUE
BO1
Base Open Cabinet - 1 Adjustable Shelf
Reference size shown. Cabinet dimensions are configurable within the ranges listed below.
24" W x 30.75" cabinet body H x 24" ordered D
34.75" overall height with 4" legs. Toe kick is a separate MD item.

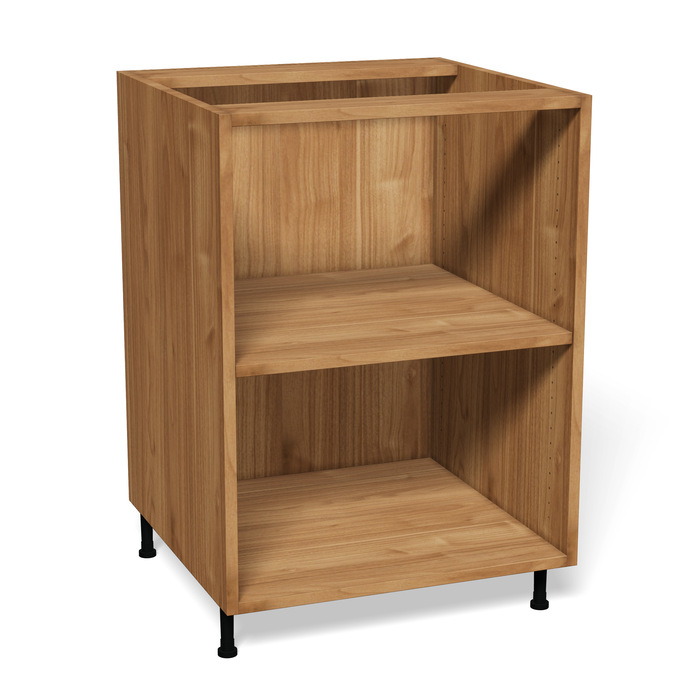

01 / CABINET VIEW
02 / CABINET RENDER - DOORS CLOSED
Image to be added.
C includes 1 adjustable shelf. B is box only, with no shelves. Shelf positions and pin-hole locations are illustrative. No doors or door-count transition.

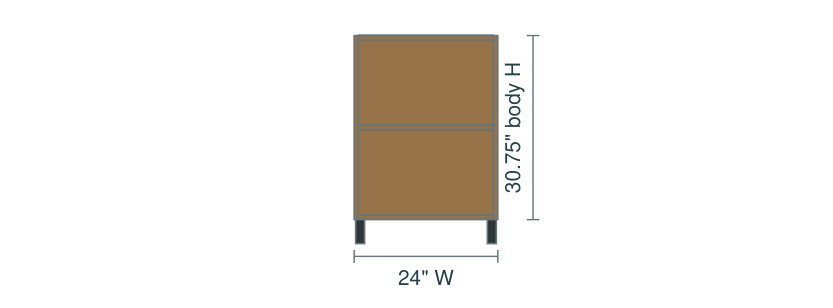

03 / FRONT ELEVATION

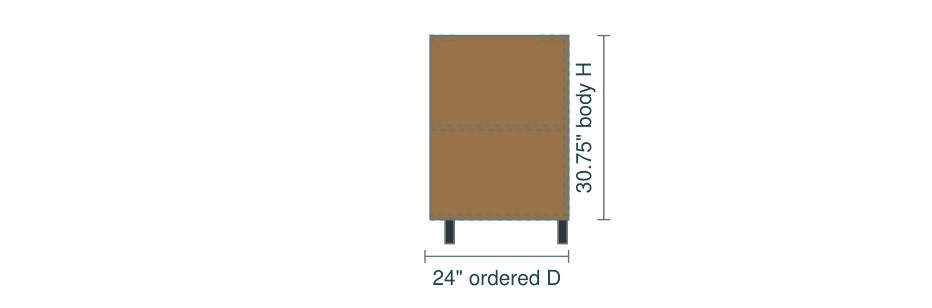

04 / RIGHT ELEVATION
Inches. Open cabinet; dimensions shown are reference dimensions.

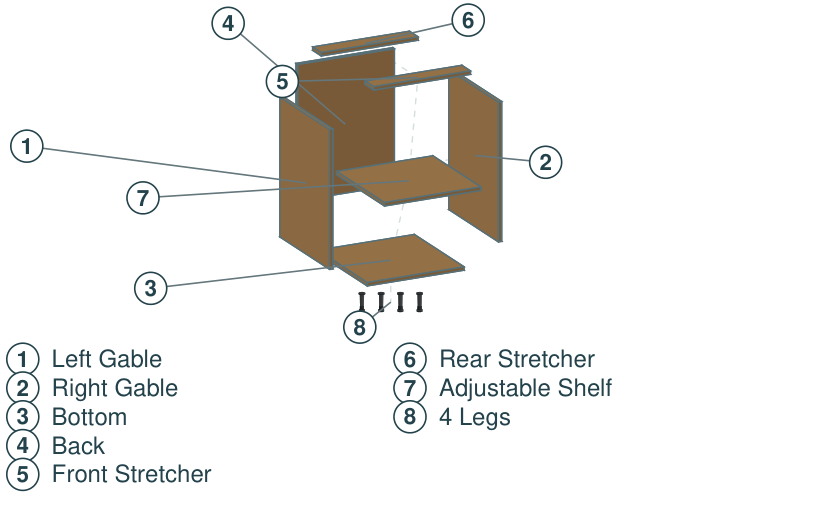

05 / SEPARATED CONSTRUCTION
06 / CONFIGURATION PARAMETERS
WIDTH10" - 36"
HEIGHT24" - 36"Standard: 30.75"
DEPTH14" - 28"Standard: 24"
BUILD LEVELSC COMPLETE B BOX ONLY
DIMENSION RULEAll dimensions in 1/8" increments.
OVERRIDE NOTESizes outside the standard ranges require review/override.
CABINET ESTIMATE / ORDER REQUEST
Add to Order Sheet
Configure this cabinet, add it to your project order sheet, then continue browsing the catalogue.
