MD  /  PRODUCT CATALOGUE

BLZR

L-Shaped Bifold Corner / Primary Right
Reference size shown. Cabinet dimensions are configurable within the ranges listed below.
36" W1 x 36" W2 footprint / 30.75" H / 24" arm D
34.75" overall height with 4" legs. Toe kick is a separate MD item.

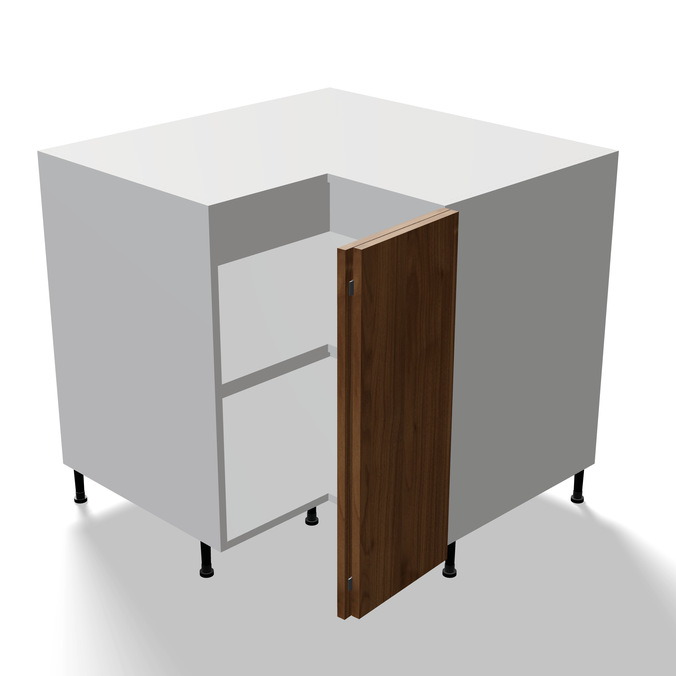

01 / CABINET RENDER - DOORS OPEN

BLZR open render

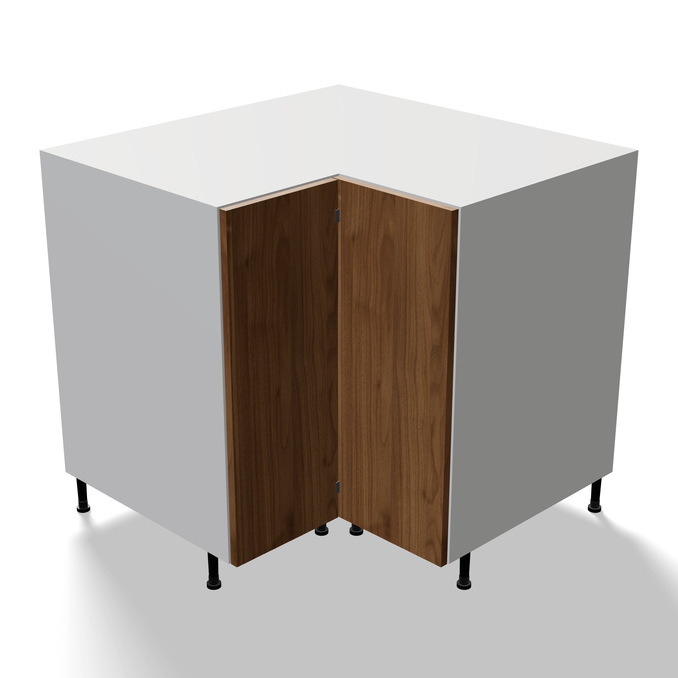

02 / CABINET RENDER - DOORS CLOSED

BLZR closed render
Two independent leg lengths; minimum length depends on depth and maintaining two doors at least 10" wide. Recommended at D24": 36" x 36". Unequal legs require review/override. Bifold hinge and shelf mounting are illustrative.

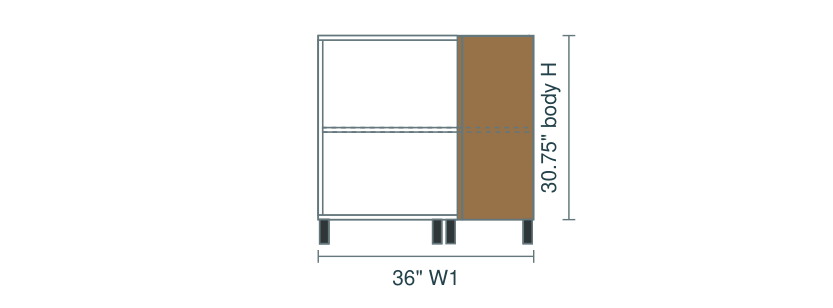

03 / FRONT ELEVATION

BLZR front elevation

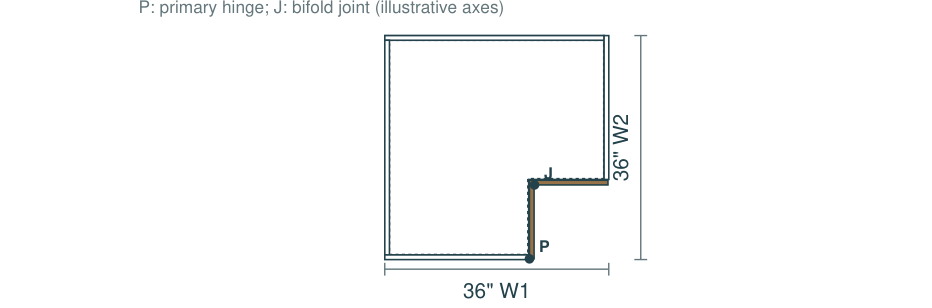

04 / L FOOTPRINT / CLOSED FRONTS

BLZR side elevation

36" W1 L-shaped bifold fronts; continuous L-shaped top, bottom and shelf. No rotating Lazy Susan mechanism.

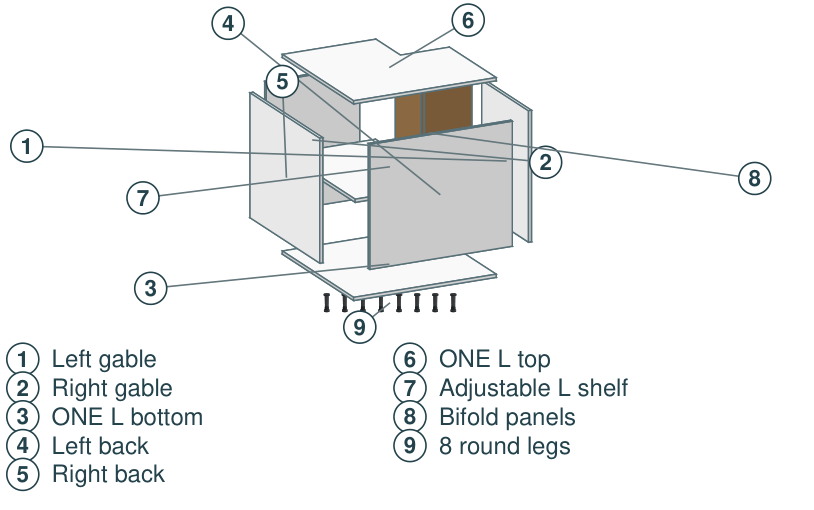

05 / SEPARATED CONSTRUCTION

BLZR separated construction

06 / CONFIGURATION PARAMETERS

LEG LENGTHSMax 36" eachMin: depth / doors
HEIGHT24" - 36"
DEPTH16" - 25.5"
BUILD LEVELSC COMPLETE N NO FRONTS B BOX ONLY
DIMENSION RULEAll dimensions in 1/8" increments.
OVERRIDE NOTESizes outside the standard ranges require review/override.
SECTION: SPECIALTY / CORNER / OTHER© 2026 Millwork Direct. All rights reserved.
CABINET ESTIMATE / ORDER REQUEST

Add to Order Sheet

Configure this cabinet, add it to your project order sheet, then continue browsing the catalogue.

BLZR
View Order Sheet

All dimensions are in inches and must be entered in 1/8-inch increments. Sizes outside standard ranges require a Measurement Override request and Millwork Direct review.
