BCT

Cooktop Base
Reference size shown. Cabinet dimensions are configurable within the ranges listed below.
24" W x 30.75" cabinet body H x 24" ordered D
34.75" overall height with 4" legs. Toe kick is a separate MD item.

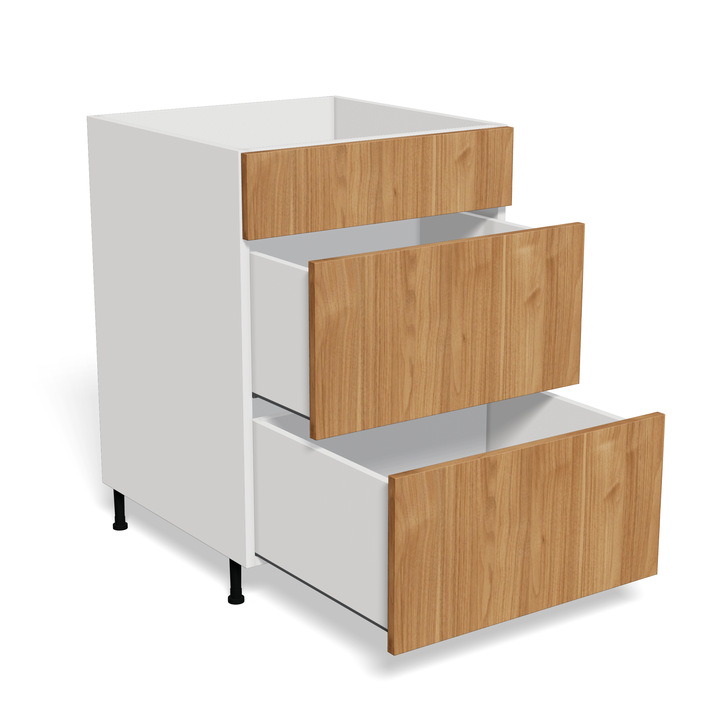

01 / CABINET RENDER - DRAWERS EXTENDED

BCT open render

02 / CABINET RENDER - DRAWERS CLOSED

BCT closed render
Fixed 6" false front; two working drawers; vertical front skirt; no stretchers or drawer divider. Drawer-box depth = ordered cabinet depth minus 6". At D24", boxes are 18" deep. Mounting is illustrative.

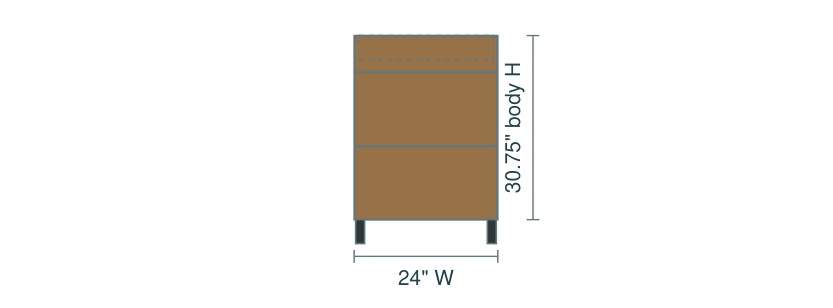

03 / FRONT ELEVATION

BCT front elevation

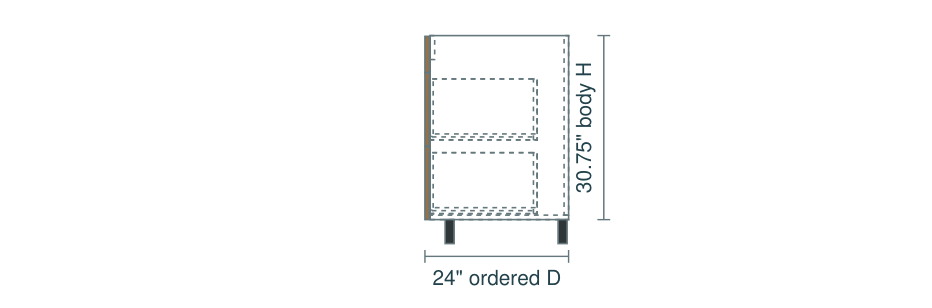

04 / RIGHT ELEVATION

BCT side elevation

Reference W24 illustration retained; select W30-36 for standard V2 orders. No cooktop or service details are inferred.

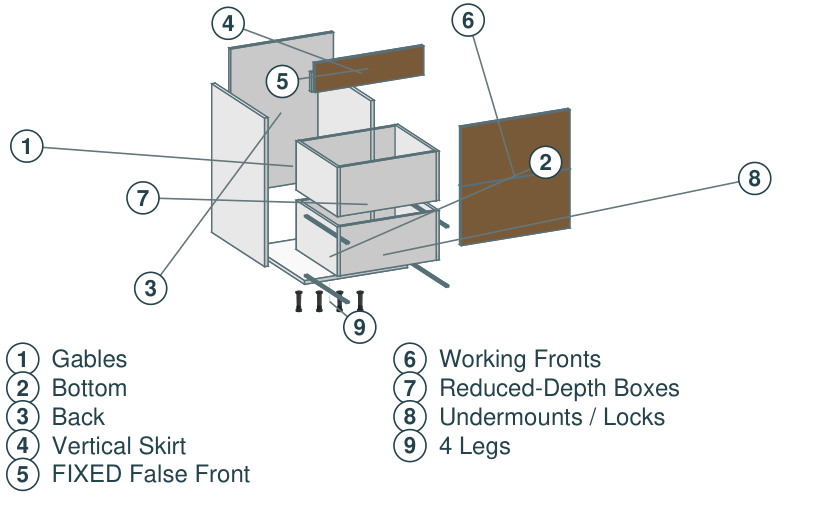

05 / SEPARATED CONSTRUCTION

BCT separated construction

06 / CONFIGURATION PARAMETERS

WIDTH30" - 36"
HEIGHT24" - 36"Standard: 30.75"
DEPTH22" - 28"Standard: 24"
BUILD LEVELSC COMPLETE N NO FRONTS B BOX ONLY
DIMENSION RULEAll dimensions in 1/8" increments.
OVERRIDE NOTESizes outside the standard ranges require review/override.
SECTION: SPECIALTY / CORNER / OTHER© 2026 Millwork Direct. All rights reserved.
CABINET ESTIMATE / ORDER REQUEST

Add to Order Sheet

Configure this cabinet, add it to your project order sheet, then continue browsing the catalogue.

BCT
View Order Sheet

All dimensions are in inches and must be entered in 1/8-inch increments. Sizes outside standard ranges require a Measurement Override request and Millwork Direct review.
