BCBL

Base Blind Corner / Blind Left
Reference size shown. Cabinet dimensions are configurable within the ranges listed below.
36" W x 30.75" cabinet body H x 24" ordered D
34.75" overall height with 4" legs. Toe kick is a separate MD item.

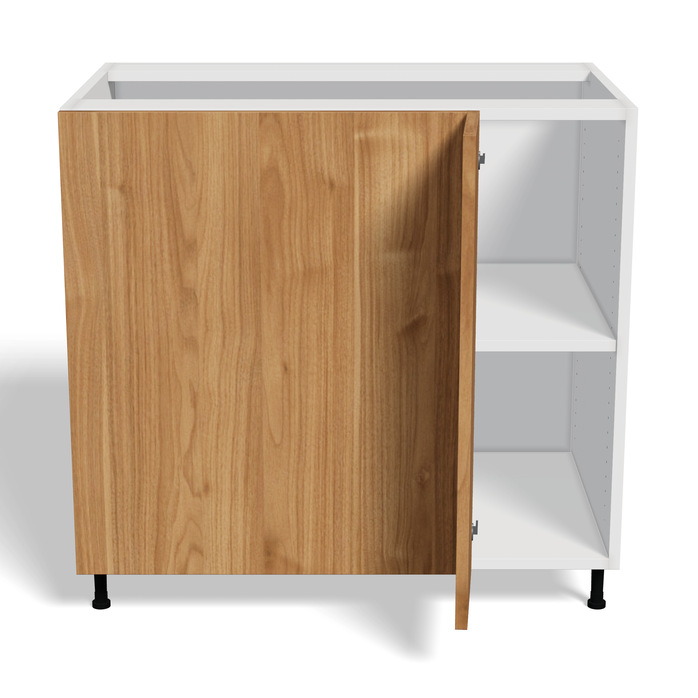

01 / CABINET RENDER - DOORS OPEN

BCBL open render

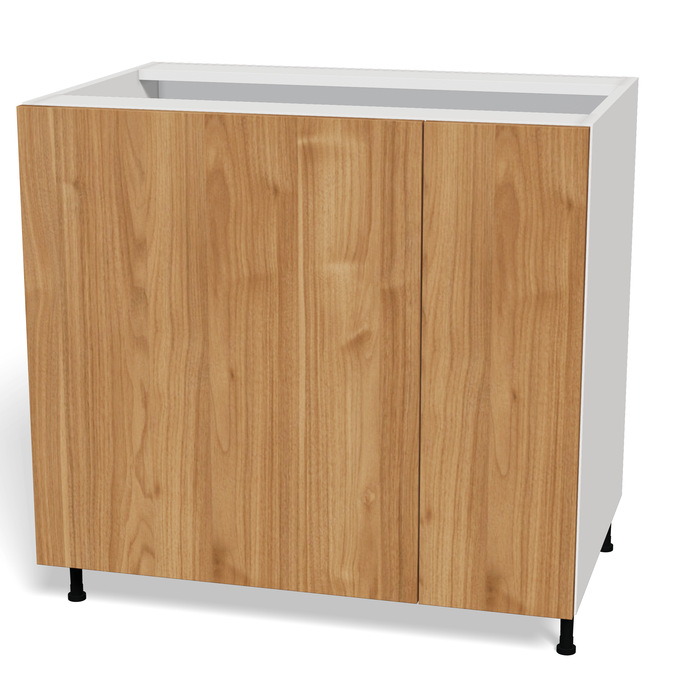

02 / CABINET RENDER - DOORS CLOSED

BCBL closed render
Blind panel left; usable opening right. Specialty hinges attach the door to the blind panel. * Size to maintain at least 10" access. Blind panel = perpendicular cabinet depth + 2"; width may require review.

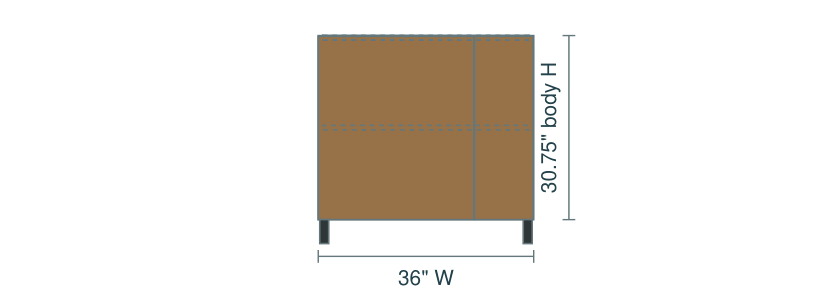

03 / FRONT ELEVATION

BCBL front elevation

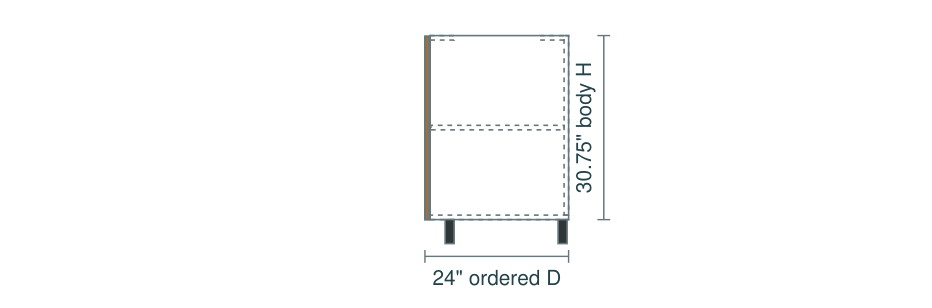

04 / RIGHT ELEVATION

BCBL side elevation

Depth is coordinated with the perpendicular cabinet; the smaller reference door is not a V2 minimum.

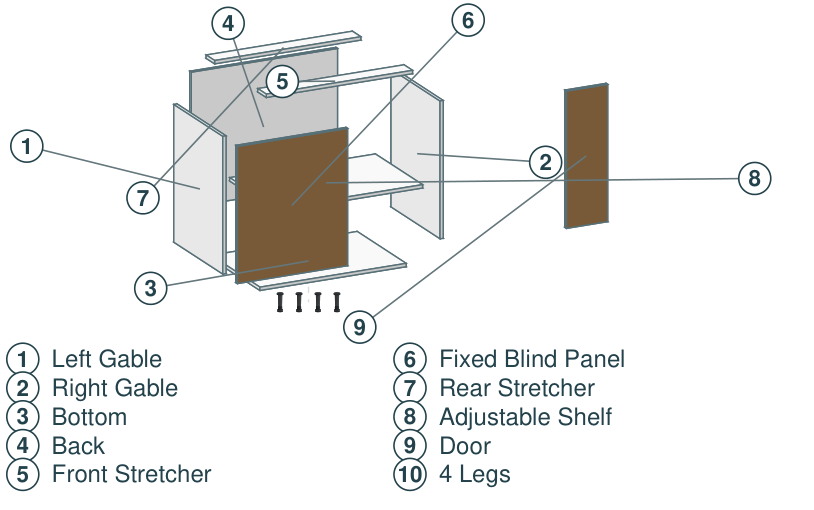

05 / SEPARATED CONSTRUCTION

BCBL separated construction

06 / CONFIGURATION PARAMETERS

WIDTH24" - 36" *Access: min 10"
HEIGHT24" - 36"Standard: 30.75"
DEPTHCoordinatedPerpendicular unit
BUILD LEVELSC COMPLETE N NO FRONTS B BOX ONLY
DIMENSION RULEAll dimensions in 1/8" increments.
OVERRIDE NOTESizes outside the standard ranges require review/override.
SECTION: SPECIALTY / CORNER / OTHER© 2026 Millwork Direct. All rights reserved.
CABINET ESTIMATE / ORDER REQUEST

Add to Order Sheet

Configure this cabinet, add it to your project order sheet, then continue browsing the catalogue.

BCBL
View Order Sheet

All dimensions are in inches and must be entered in 1/8-inch increments. Sizes outside standard ranges require a Measurement Override request and Millwork Direct review.
