MD  /  PRODUCT CATALOGUE

B6D1PO8

Base 6-inch Drawer + Lower Pull-Out / 8-inch Box
Reference size shown. Cabinet dimensions are configurable within the ranges listed below.
24" W x 30.75" cabinet body H x 24" ordered D
34.75" overall height with 4" legs. Toe kick is a separate MD item.

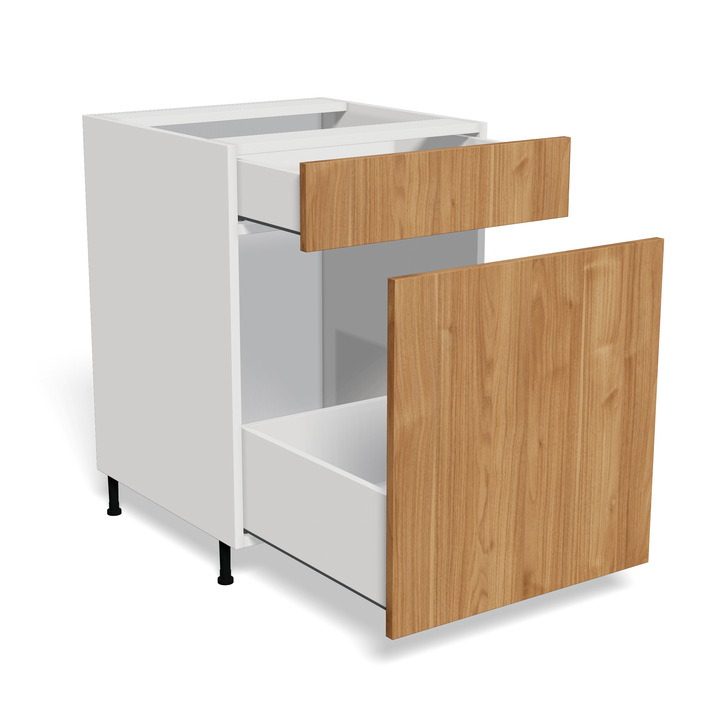

01 / CABINET RENDER - DRAWER + PULL-OUT EXTENDED

B6D1PO8 open render

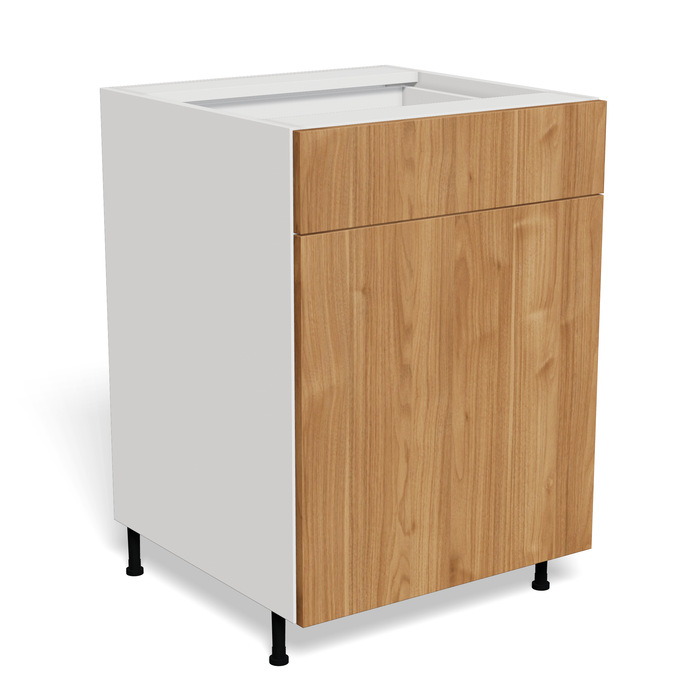

02 / CABINET RENDER - DRAWER + PULL-OUT CLOSED

B6D1PO8 closed render
Separate top drawer and lower pull-out. Recommended bin height = pull-out portion height minus 5". Compatible third-party pull-out mechanisms may be purchased separately with an attached Millwork Direct door/front.

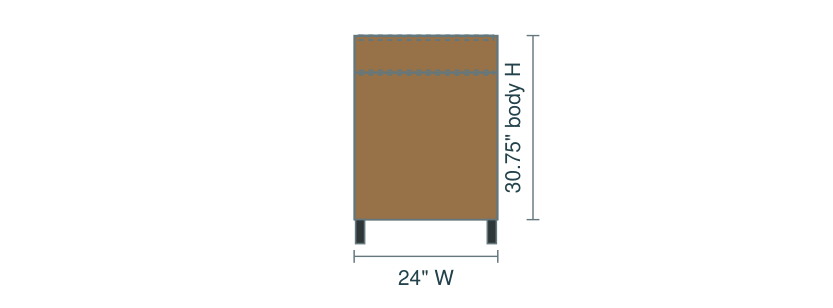

03 / FRONT ELEVATION

B6D1PO8 front elevation

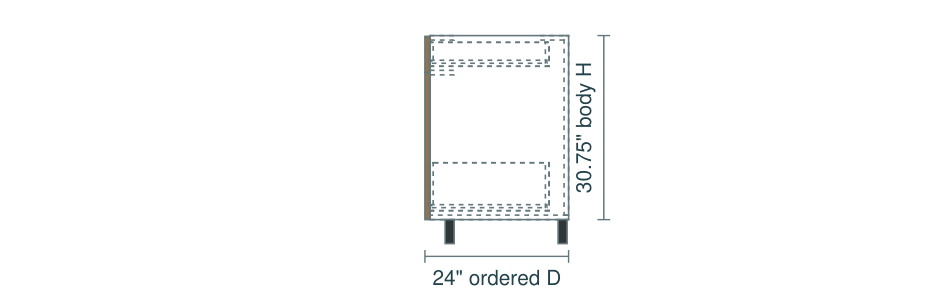

04 / RIGHT ELEVATION

B6D1PO8 side elevation

Drawer-box and slide mounting elevations are illustrative; no production machining locations are specified.

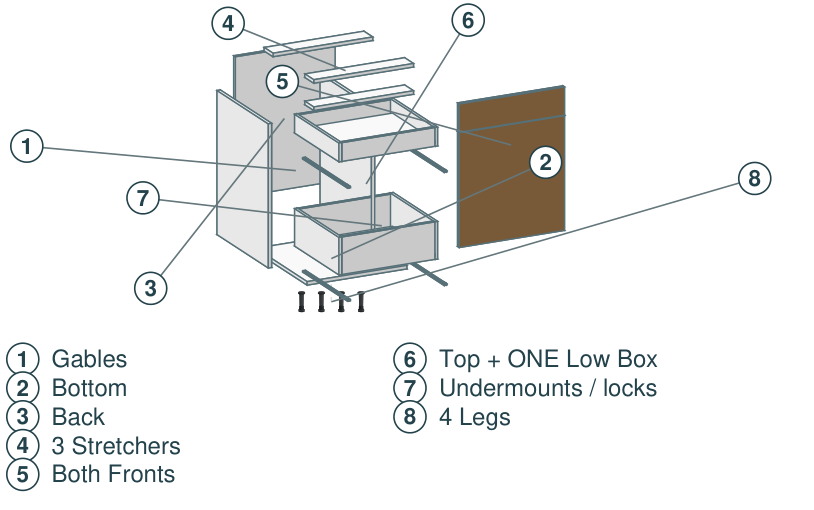

05 / SEPARATED CONSTRUCTION

B6D1PO8 separated construction

06 / CONFIGURATION PARAMETERS

WIDTH10" - 36"
HEIGHT24" - 36"Standard: 30.75"
DEPTH14" - 28"Standard: 24"
BUILD LEVELSC COMPLETE N NO FRONTS B BOX ONLY
DIMENSION RULEAll dimensions in 1/8" increments.
OVERRIDE NOTESizes outside the standard ranges require review/override.
SECTION: BASE CABINETS© 2026 Millwork Direct. All rights reserved.
CABINET ESTIMATE / ORDER REQUEST

Add to Order Sheet

Configure this cabinet, add it to your project order sheet, then continue browsing the catalogue.

B6D1PO8
View Order Sheet

All dimensions are in inches and must be entered in 1/8-inch increments. Sizes outside standard ranges require a Measurement Override request and Millwork Direct review.
