B3DE
Base 3 Equal Drawers
Reference size shown. Cabinet dimensions are configurable within the ranges listed below.
24" W x 30.75" cabinet body H x 24" ordered D
34.75" overall height with 4" legs. Toe kick is a separate MD item.

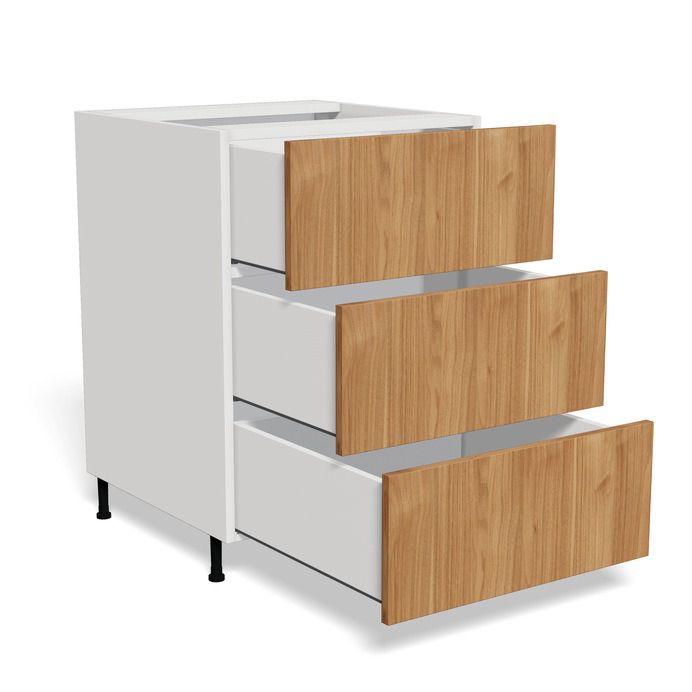

01 / CABINET RENDER - DRAWERS EXTENDED

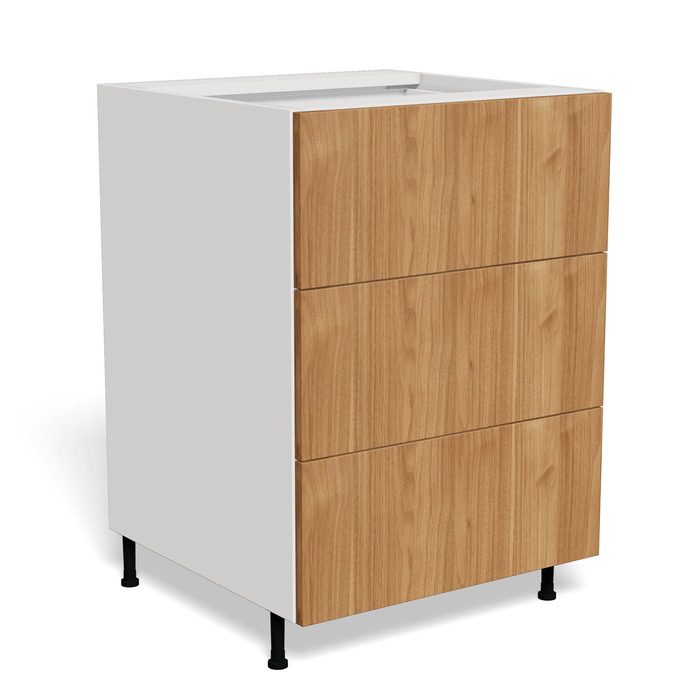

02 / CABINET RENDER - DRAWERS CLOSED
Drawer elevations, groove elevation and slide mounting are illustrative; not production dimensions.

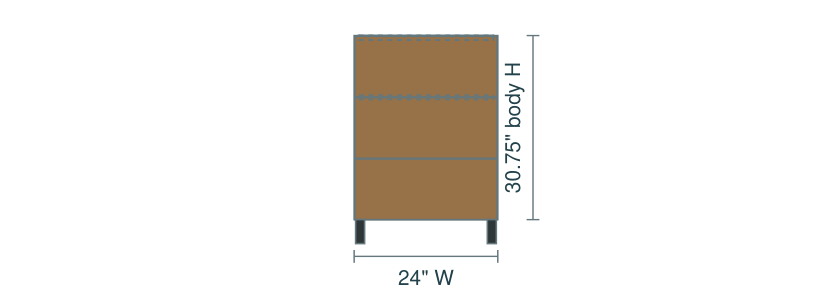

03 / FRONT ELEVATION

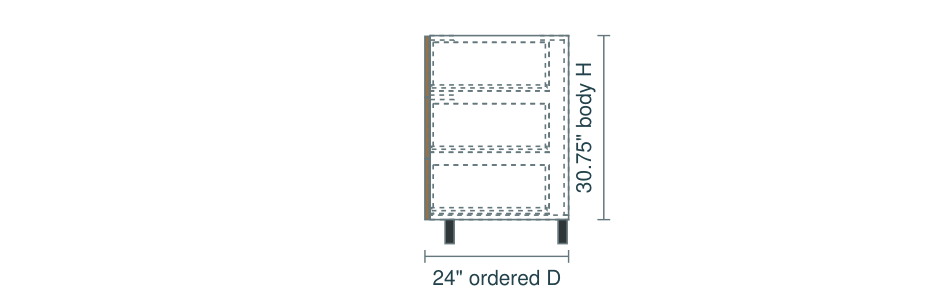

04 / RIGHT ELEVATION
Inches. Drawers closed; confirmed front reveals and three horizontal stretchers.

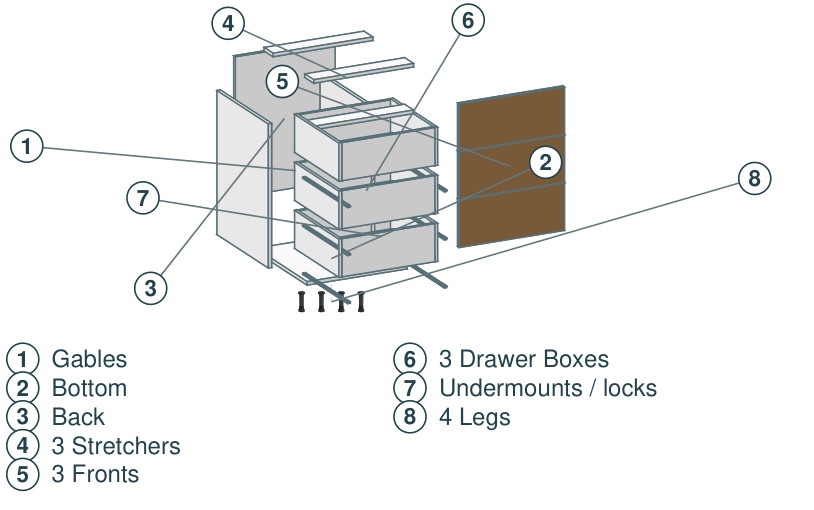

05 / SEPARATED CONSTRUCTION
06 / CONFIGURATION PARAMETERS
WIDTH10" - 36"
HEIGHT24" - 36"Standard: 30.75"
DEPTH14" - 28"Standard: 24"
BUILD LEVELSC COMPLETE N NO FRONTS B BOX ONLY
DIMENSION RULEAll dimensions in 1/8" increments.
OVERRIDE NOTESizes outside the standard ranges require review/override.
CABINET ESTIMATE / ORDER REQUEST
Add to Order Sheet
Configure this cabinet, add it to your project order sheet, then continue browsing the catalogue.
