B1DRW

Base 1 Drawer Unit
Reference size shown. Cabinet dimensions are configurable within the ranges listed below.
30" W x 14" cabinet body H x 24" ordered D
18" overall height with 4" legs. Toe kick is a separate MD item.

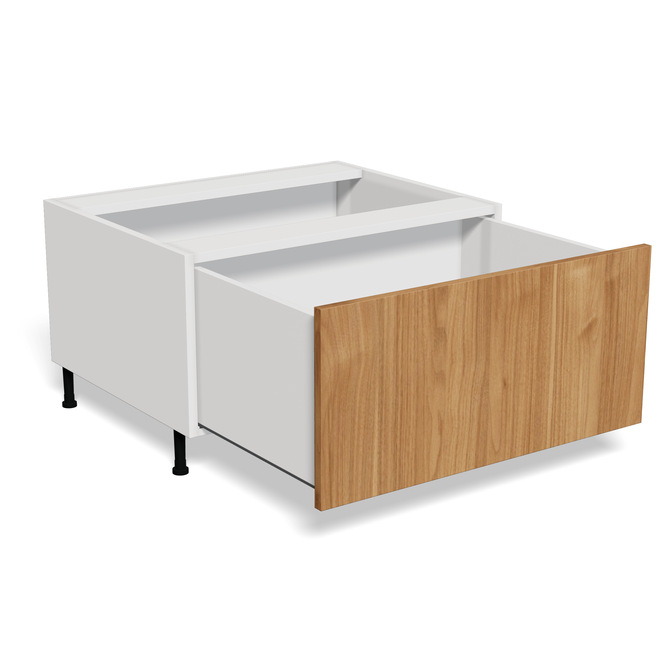

01 / CABINET RENDER - DRAWERS EXTENDED

B1DRW open render

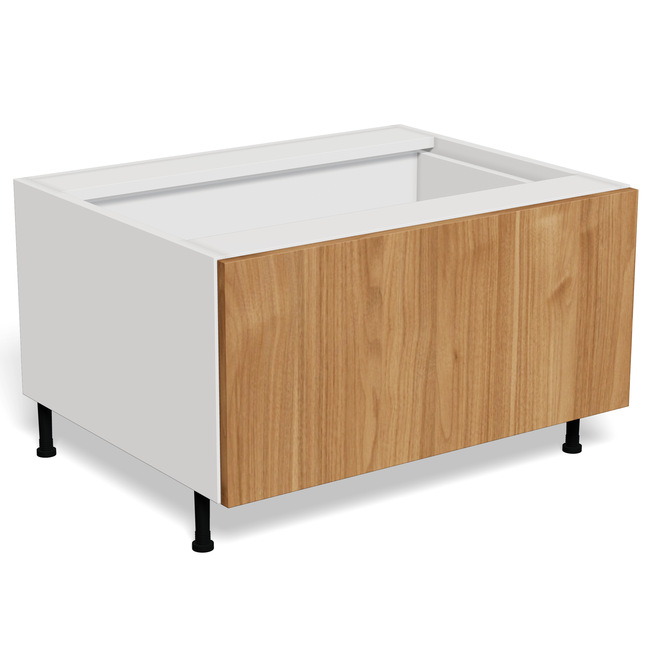

02 / CABINET RENDER - DRAWERS CLOSED

B1DRW closed render
One working drawer, two top stretchers and four adjustable legs; no toe kick. Drawer-box and slide mounting elevations are illustrative, not production machining dimensions.

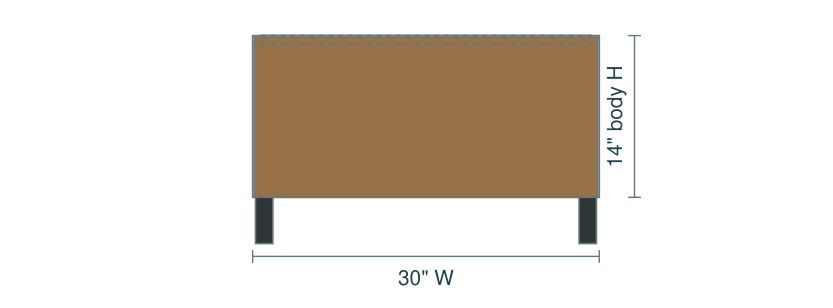

03 / FRONT ELEVATION

B1DRW front elevation

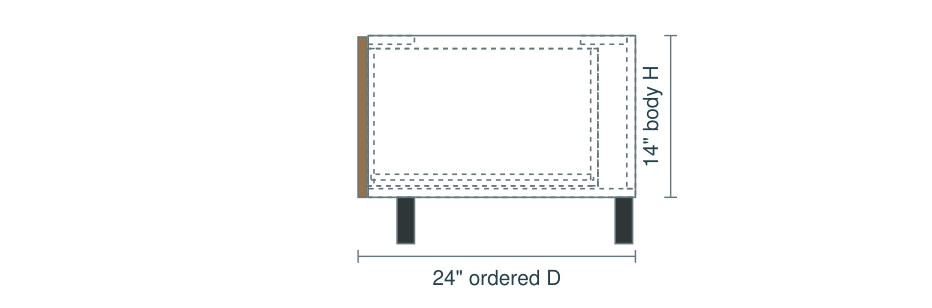

04 / RIGHT ELEVATION

B1DRW side elevation

Inches. Single drawer closed; 1/8-inch top/side reveals, bottom flush; TWO top stretchers.

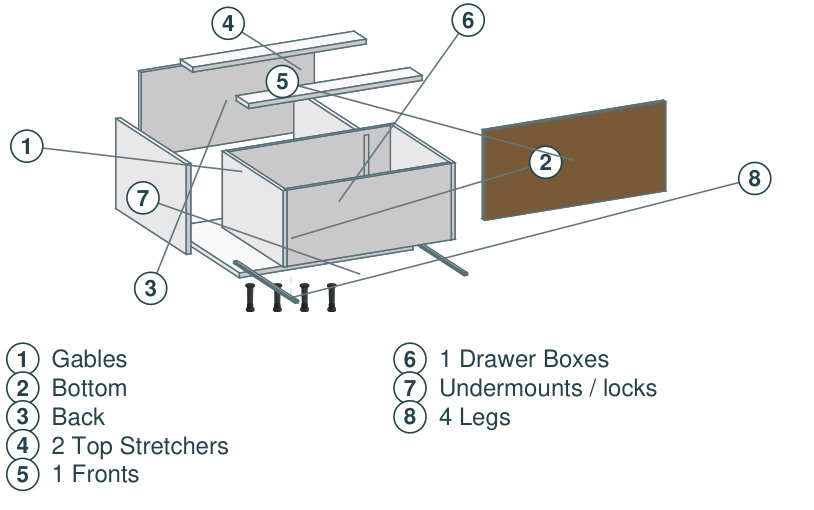

05 / SEPARATED CONSTRUCTION

B1DRW separated construction

06 / CONFIGURATION PARAMETERS

WIDTH10" - 36"
HEIGHT6" - 14"
DEPTH14" - 28"
BUILD LEVELSC COMPLETE N NO FRONTS B BOX ONLY
DIMENSION RULEAll dimensions in 1/8" increments.
OVERRIDE NOTESizes outside the standard ranges require review/override.
SECTION: SPECIALTY / CORNER / OTHER© 2026 Millwork Direct. All rights reserved.
CABINET ESTIMATE / ORDER REQUEST

Add to Order Sheet

Configure this cabinet, add it to your project order sheet, then continue browsing the catalogue.

B1DRW
View Order Sheet

All dimensions are in inches and must be entered in 1/8-inch increments. Sizes outside standard ranges require a Measurement Override request and Millwork Direct review.
